PP Core Pipe Tube Extrusion Production Line

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: AF-100,AF-120

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden box

Delivery Time: 1 Month

Payment Terms: 30% TT,70% before shipping

Supply Ability: 100 sets per month

Get Best Price
Product Details
Highlight:
Weight:
Customized
Extrusion Capacity:
60-100kg/h
Screw Diameter:
65-80mm
Power:
22-50kw
Heating Power:
18-30kw
Application:
Pipe Production
Dimension:
Customized
Max. Output:
50-100kg/h
Certification:
CE, ISO9001:2008, SGS
Keywords:
PP Pipe Machine
Weight:
Customized
Extrusion Capacity:
60-100kg/h
Screw Diameter:
65-80mm
Power:
22-50kw
Heating Power:
18-30kw
Application:
Pipe Production
Dimension:
Customized
Max. Output:
50-100kg/h
Certification:
CE, ISO9001:2008, SGS
Keywords:
PP Pipe Machine
Product Description

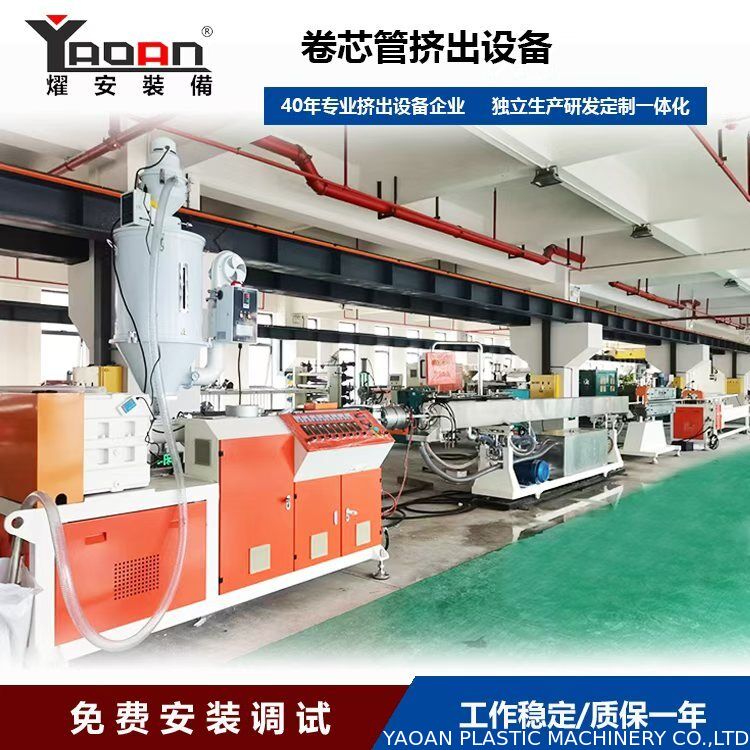

PP Core Pipe Tube Extrusion Production Line


The PP core tube extrusion line is a professional and fully automatic plastic extrusion system specially designed for producing polypropylene plastic core tubes. The finished PP core tubes are widely used as inner supporting tubes for stretch films, adhesive tapes, packaging films, non-woven fabrics and various rolling materials in the packaging and plastic industries. The whole line realizes continuous extrusion, sizing, cooling, traction and fixed-length cutting to produce high-precision hollow plastic core pipes.

The pipe production line is mainly used to produce PE/PP roll core tubes.

Roll core tube is mainly used for sheet and film high speed winding, compared with paper tube, it has incomparable advantages, high precision, no chip and high strength, high precision. Main applications:

Sheet material winding and rewinding, film material winding and rewinding.

Production line equipment composition:

The complete PP core tube production line consists of the following main units:
  • Single-screw extruder: The core equipment for melting and plasticizing PP raw materials. It stably conveys and extrudes molten plastic materials to ensure uniform tube wall thickness.
  • Tube die head: Professional annular die structure for hollow tube extrusion. Different specifications of die and mandrel can be replaced to produce core tubes of various inner diameters and wall thicknesses.
  • Vacuum sizing tank: Adopts vacuum negative pressure shaping technology to guarantee high roundness, accurate inner and outer diameter size and stable tube shape.
  • Cooling water tank: Further cools and solidifies the shaped PP tube to prevent deformation and improve product hardness.
  • Crawler tractor: Provides stable and synchronous traction speed, matching the extrusion output to control tube wall thickness precisely.
  • Fixed-length cutting machine: Automatic precise cutting according to the set length with smooth and flat cutting surface, no burrs.
  • Material rack: Automatically collects and stacks finished PP core tubes.
  • Electric control system: Equipped with PLC and touch screen, realizing integrated intelligent control of temperature, extrusion speed, traction speed and cutting length.

PP Core Pipe Tube Extrusion Production Line


FAQ

1. Q: Are you a factory or trading company?

A: We are a factory and giving you the quickest reply in 24 hours.

2. Q: What's your company mainly in?

A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 30 years.

Other machines have included machines in production line, such as luggage edge cutting machine and punching machine.

(We can produce total production line. )

3. Q: What's the material should have for our extruder machine( produce luggage purpose)

A: ABS. PC. PP.PE.PS.PET.HIPS granulates etc plastic material can do.

4. Q: How's your strength of your company?

A: Has a group of senior technical personnels, strong technical force, we have the

whole running system, including design, development, production, installation,service.

One year quality guarantee, life-time service.

5. Q: If your company has passed some certificates?

A: Yes, we have passed CE, ISO.



About Us


Eva Spiral Vacuum Cleaner Hose Extrusion Line 7

Eva Spiral Vacuum Cleaner Hose Extrusion Line 8

Eva Spiral Vacuum Cleaner Hose Extrusion Line 9

Eva Spiral Vacuum Cleaner Hose Extrusion Line 10

Eva Spiral Vacuum Cleaner Hose Extrusion Line 11

Eva Spiral Vacuum Cleaner Hose Extrusion Line 12

Packaging and shipping


PACKAGING

plastic film + stretch film + wooden case + drying agent.


DELIVERY

About 120 days (all new parts)


SHIPPING

We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.



What is our service system?


PRE-SALE

a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;


IN PRODUCTION

a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;


AFTER SALE

a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;



Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
