Innovative PC PS Carrier Tape Extrusion And Forming Machine For Electronic Components

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: AF-45

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price
Product Details
Highlight:

carrier tape machine

,

tape and reel packaging machine

Material:
PC, PS
Line Speed:
25m/min
Cavities:
1 Into 9
Winding:
Included
Raw Materials:
PC, PS Resins
Punching:
Advantage Design
Width:
8-12-16mm
Application:
Electronic Components
Material:
PC, PS
Line Speed:
25m/min
Cavities:
1 Into 9
Winding:
Included
Raw Materials:
PC, PS Resins
Punching:
Advantage Design
Width:
8-12-16mm
Application:
Electronic Components
Product Description

New Innovative PC PS Carrier Tape Extrusion And Forming Machine For Electronic Components



Advanced production technology, the use of plastic materials put them directly into your device, from the extrusion - molding - punching - slitting - rewinding complete automation of all processes; three-particle composite direct molding, the process is simple and efficient utilization of raw materials is high, replace the conventional secondary molding, greatly reduce production costs, production efficiency is ten times the number of traditional production process.



Carrying (Carrier Tape) refers One kind used in electronics packaging ribbon products,



It has a specific thickness, in the longitudinal direction of the electronic element equally spaced used Holds

Member cavities (also known as product bag) and used for index positioning positioning hole.

Carrying purposes:

Carrying mainly used in electronic component placement industry. It is with the cover band (with the closure)

Use, resistors, capacitors, transistors, diodes and other electronic components housed in the bearing carrier

Belt pocket, and for the protection of electronic components during transport from contamination and damage by the carrier tape side sealing cover tape forming closed packaging. When mounting electronic components, the cover tape is peeled off, automatic placement equipment carrier tape index holes through precise positioning, placing components installed successively remove the pocket and put stickers mounted on circuit boards (PCB board) .



Carrying Category:

Divided by width: Depending on the size of packaging carrying the electronic components carrier tape is also divided into different widths. Common width of 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm and so on. With the development of electronic markets, the chip has a smaller and smaller trends, carrying corresponding to the precise direction, there are already carrying 4mm wide exhibition on the market.



By function: To protect electronic components from electrostatic damage, and then one of these fine-level electronic components antistatic carrier tape clearly required, depending on the level of anti-static, the carrier tape can be divided into three types, conductivity type, anti- electrostatic (electrostatic dissipative) and insulation type.



Press molding characteristics pockets points: embossed carrier tape (embossed carrier tape) and punch carrier tape (punched caeeier tape) embossed carrier tape is through the plastic mold stamping or both methods so that portion of the tape carrier material to produce drawing extension, forming concave shape of the pocket, which according to the specific needs of the carrier tape, molded products of different sizes to accommodate the size of the bloom bags of electronic components, stamping carrying means is formed by punching through the mold or semi-wear through pocket, this carrier tape thickness of electronic components can be in full bloom by the thickness of the carrier tape itself limits, One generally only used for packaging small components.

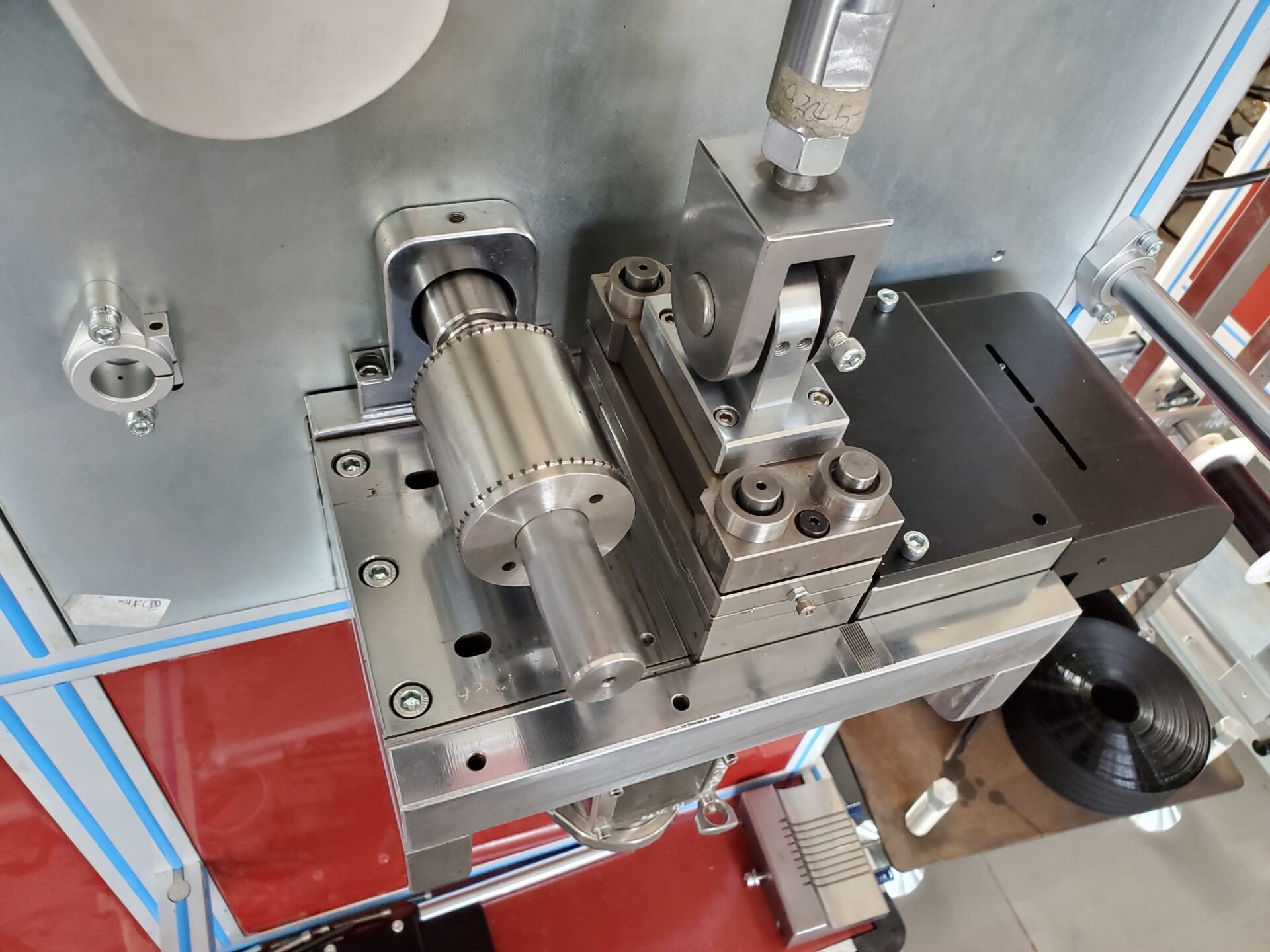

Innovative  PC PS Carrier Tape Extrusion And Forming Machine For Electronic Components 0

Innovative  PC PS Carrier Tape Extrusion And Forming Machine For Electronic Components 1

Service
1). Delivery: We will assemble the line before delivery and invite you come to our factory to
inspect the equipment. When you accept the quality of the line then we will deliver it.
2).Training and Installation:
When you receive the whole equipment, we will send 1-2 engineers to your factory for
installation and testing the we will train some skill workers for you.
3). In the following year if you have any problems of the equipment you can send email to us
then we will send the professional engineers to help you to solve the problems.
4). Welcome you to inspect our company.


Packaging and shipping

PACKAGING

plastic film + stretch film + wooden case + drying agent.

DELIVERY

About 80 days (all new parts)

SHIPPING

We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.


What is our service system?

PRE-SALE

a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;

IN PRODUCTION

a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;

AFTER SALE

a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;


Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
