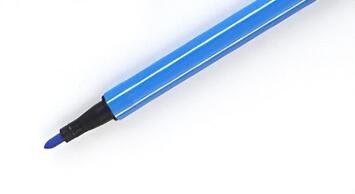

Ink Reservoir For Maker Pen, Highlighter Pen Fiber Reservoir Refills Making machine
This machine is used to make fiber marker pen reservoir,the product is made of polyester fiber 300DTY+pp.
Machine specifications as below:
Rewinding stand: one set
4 rollers stretch unit: one set
Rubber rollers: 2pcs
Φ50 extruder: one set
Hopper: one set
Screw diameter: 50mm
Screw L/D: 28:1
Screw structure: special for PP
The screw and the barrels are all made of high quality nitrided steel-38CrMoAIA,and are nitration austerely according to NATIONAL STANDARD, nitration hardness: screw≧740HV;barrels≧940HV. Nitration depth: screw: 0.4-0.6mm, barrel: 0.6-0.7mm, fragility is 2 grades
Gear box (one set)
The gear box materials is made of alloy cast steel, contract surface of up, down box deal with precision tempering, quenching heat treatment, the teeth deal with grinding and peeling eventually, the teeth surface harshness is Ra 0.8, and provided with damping, antifriction, low-noise etc. characteristics.
Electric control cabinet: one set
Include stretch unit speed control, extruder speed control, water tank movement control, vacuum control, water pump control, vacuum dewater unit control
Extruding die: one set
5m stainless steel vacuum cooling water tank: one set
Tank size: L5000mm*W220mm*H200mm
Water tank frame: one set
Four rollers hauls off/cutting combination machine (one set)
Roller material: PU, hardness about
Haul off control power: 1.5kw (Mitsubishi servo motor)
Haul off control style: servo controller
Cutting unit control power: 1.5kw (Mitsubishi servo motor)
Cutting unit control type: servo controller
Cutter speed: 200-1600RPM
Cutting length: 40-120mm
YAOAN machine shipment:
Packaging and shipping
|PACKAGING||plastic film + stretch film + wooden case + drying agent.|
|DELIVERY||About 50 days (all new parts)|
|SHIPPING||We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.
What is our service system?
|PRE-SALE||a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
|IN PRODUCTION||a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
|AFTER SALE||a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;
Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
