PP Plastic Extrusion Machine Ball Pen Making Machine With ISO9001 / CE Certificate

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 65
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Material: PP Screw: 55mm
LD: 28:1 Motor: Siemens
Inverter: ABB Warranty: 1 Year
High Light:

plastic extrusion equipment

,

plastic extrusion plant

,

ISO9001 Ball Pen Making Machine

PP Ball Pen Barrel Extrusion Machine, CE Certificated, ISO9001



Product Information



This machine is commposed of frequency conversion extrusion machine, mould, vacuum diameter-fixed device, traction and cutting units and etc. Auailable of monochromaticdichromatictricolorfour color and etc.

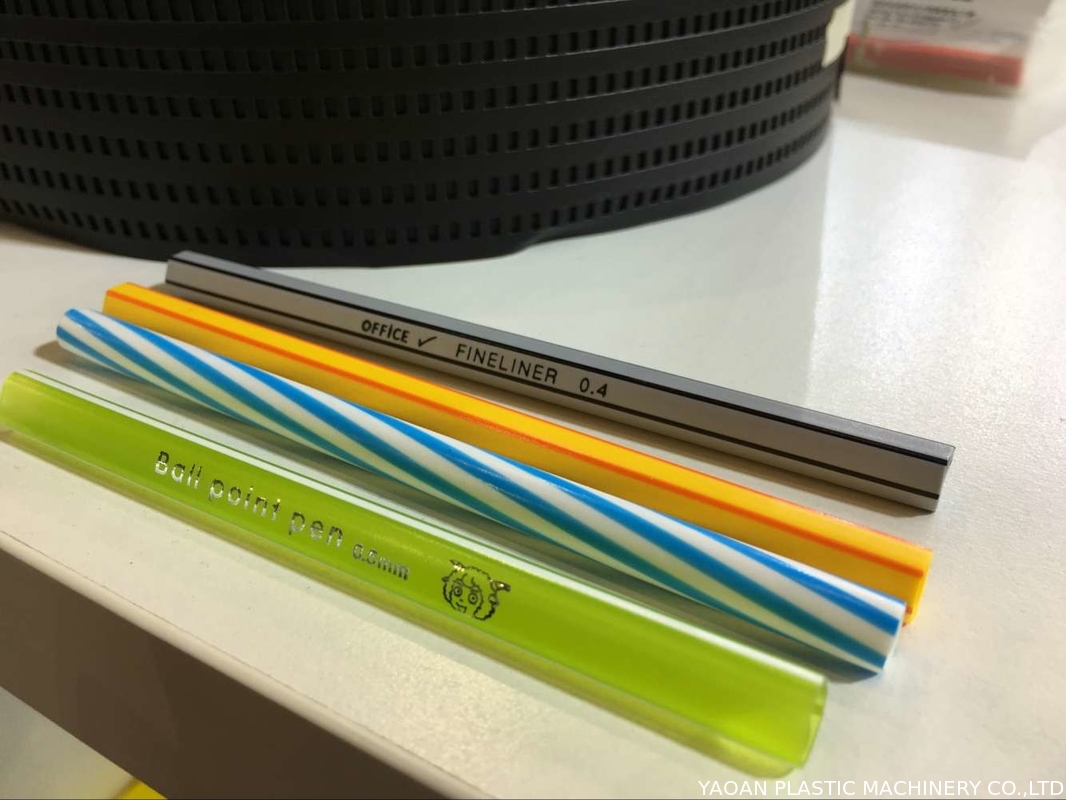

The machines are widely used for producing drink strawnozzlecotton sliplollipop sticktooth pipkball-pen corewatercolor pen core toy tubedrop tube and other small industrial irregular shape pipes only by changing the moulds.



Three color ball pen barrel machine configurations and quotation:


Φ50mm extruder: one
Screw diameter: 50mm
Screw L/D:28:1
Screw style: special
Speed reducer: one set
Motor power: 11kw
Control style: frequency conversion
Φ25mm extruder: two pieces
Screw diameter: 25mm
Screw L/D:20:1
Screw style: special
Speed reducer: one set
Motor power: 1.5kw
Control style: frequency conversion
Heating zones: 9 zones
Electric control box: one set

Extruding die: 1 set (pipe specification provided by customer)
Sizing sleeve: one set

Stainless steel vacuum calibration trough: one set
Length:6m
Length of Vacuum chamber: 300mm
Pump power: 1.5kw
Water stand: one set

Haul off machine: one set
Style: Belt
Special speed reducer provides high effective synchronic transmission
Control power: 1.5kw
Control style: frequency conversion

Cutter
Servo type suitable for single and double knife.
Cutting - upto 300 cuts/min
Motor power: 1.5kw
Tolerance: 0.5 mm for length.
