PE Sprinkler Irrigation Pipe Extrusion Machine , Farm Irrigation Drip Irrigation Pipe Making

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 65
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH

PE Sprinkler Irrigation Pipe Extrusion Machine , Farm Irrigation Drip Irrigation Pipe Making



1. Main Features:

1) Dripper feeding , choosing, conveying and inserting can be completed conscientiously and synchronously. The dripper inserting speed can be adjusted according to the prodution speed of the tape, ensuring accuracy and firm bonding of the dripper and tape.

2) SIEMENS PLC control system can achieve the synchronous control of the whole line and each parts, with high precision and easy to operate.

3) Specialy design the runner of the die head to make sure the steady extrusion of the pipe with thin thickness, which minimum thickness can be 0.15mm.

4) Optimized design of the vacuum calibrating tank to make sure the steady vacuum degree of the tank.

5) PLC monitoring punching sytem with visual sensor, to make sure the high speed punching with high precision.

6) Fully automatic pipe coiling machine to coil pipe and change roil at fixed length.

PE Sprinkler Irrigation Pipe Extrusion Machine , Farm Irrigation Drip Irrigation Pipe Making

2. Technical Parameters:

1 Tape Diameter φ12mm,φ16mm,φ20mm
2 Design Production Speed 200m/min
3 Central Line Height 1000mm
4 Machine direction From right to left

3.Main Components:

NO. Item Model QTY
1 Automatic emitter screening and identification devices QR-1100 1SET
2 Automatic emitter feeding system QR-300 1SET
3 Extruder SJ-75/36 1SET
4 Sizing bush φ16 1SET
5 Vacuum water tank 4m 1SET
6

Cooling water tank



4m 1SET
7 Emitter mixing system   1SET
8

Tractor



1.2m 2SET
9 Punching device   1SET
10 Online monitor and picture indentify system   1SET
11 Automatic winding and roll changing machine   1SET
12 Siemens electrical control system   1SET
13 Tape break alarm system SICK 1SET
14 Punching miss alarm system SICK 1SET
15 Permit air alarm system SICK 1SET

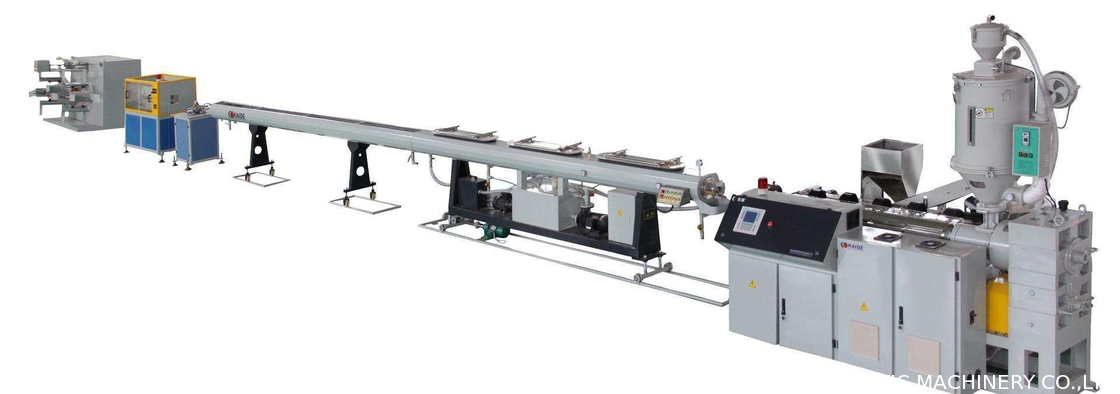

4.Picture Of The Machine:

PE Sprinkler Irrigation Pipe Extrusion Machine , Farm Irrigation Drip Irrigation Pipe Making

PE Sprinkler Irrigation Pipe Extrusion Machine , Farm Irrigation Drip Irrigation Pipe Making

Packaging and shipping

PACKAGING

plastic film + stretch film + wooden case + drying agent.

DELIVERY

About 50 days (all new parts)

SHIPPING

We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.


What is our service system?

PRE-SALE

a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;

IN PRODUCTION

a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed ofthe production status;

AFTER SALE

a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;


Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
