| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YAOAN |
| Certification: | CE |
| Model Number: | AF-20 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | WOODEN BOX |
| Delivery Time: | 30-90 DAYS |
| Payment Terms: | TT,LC |
| Supply Ability: | 100 SETS PER MONTH |
| Machine Color: | Red | Motor Control: | Servo Motor |
|---|---|---|---|
| Material: | PS+ Additives | Screw: | Twin |
| Warranty: | 1 Year | Inverter: | ABB |
| High Light: | plastic extrusion line,plastic extrusion plant,OEM Plastic Double Screw Extruder |
||

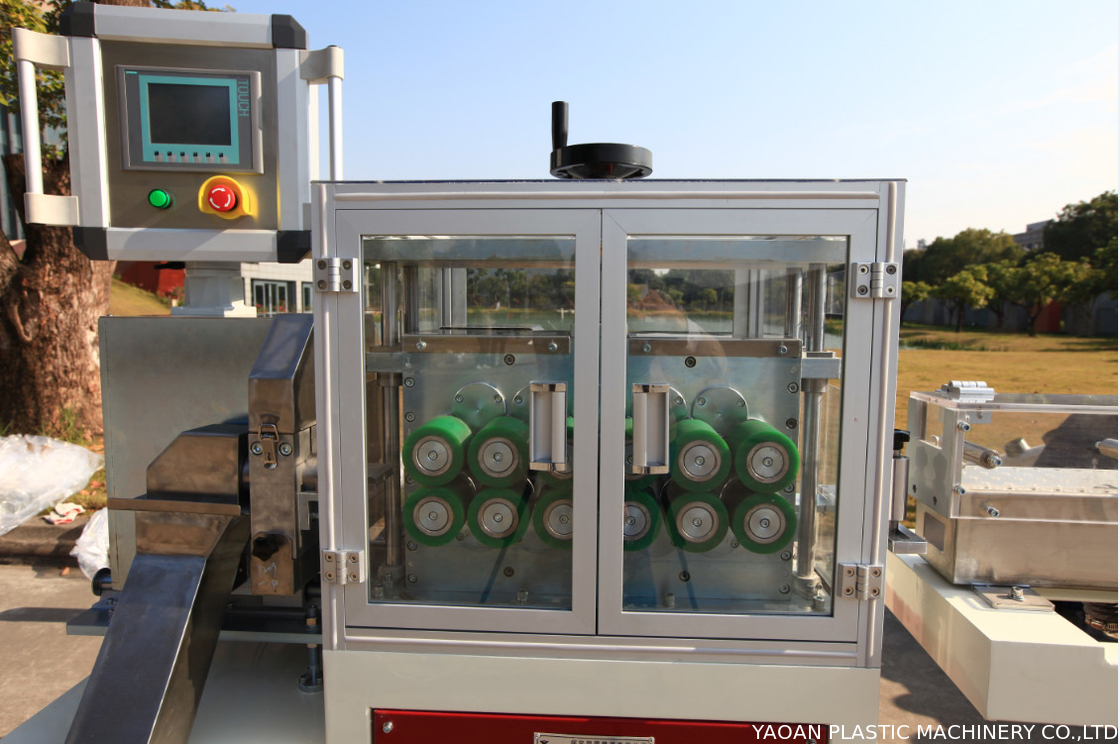

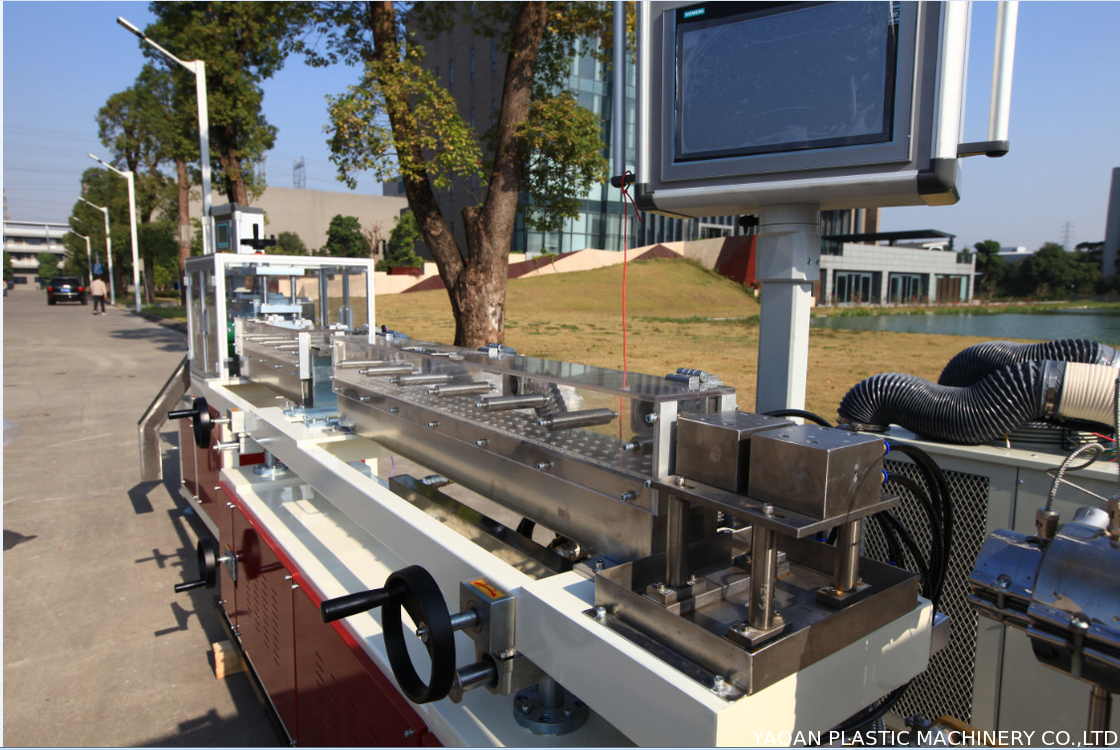

Lubrication Strip Extrusion Machine For Razor, CE Certificated, ISO 9001
Yaoan plastic machinery is the Top brand in China,who makes lubrication strip production lines
we have supplied this machine to world famous companies.
φ 20 twin screw single - color lubrication strip extrusion production line configuration and quotation:
Note: The configuration is reduced, the precision of the product size should be reduced also, the precision error of the cutting length 3~30.6 is reduced to ±0.5~±0.8mm
Ⅰ.The equipment consists of:
A. Extrusion system B. extrusion die head: 1 set
1). Twin Screw Extruder: 1 set
2). Melt pump: 1 set
C. Traction system
1). Wheels traction machine: 1 set
2). back and forth cooling tank: 1 set
D. Precision wheels traction machine: one set
E. Cutting system
Flying Cutting: 1 set
F. air cooling system
Air-cooling unit: 1 set
G. PLC control system
Note:
1, installed power: ~28kw
2, the installation size (length * width * high):7000*2000*1650mm
3, water: 0.2~0.4, MPa, the maximum water consumption: 03m3/h
4, gas source: 0.3~0.6mpa, the maximum gas consumption: 3L/min
