PC Transparent Pipe Production Line With Siemens Motor

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: 65

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price
Product Details
Highlight:

PC Transparent Pipe Production Line

,

Pipe Production Line With Siemens Motor

Material:
PC, PMMA
Screw:
65mm
LD:
33:1
Warranty:
1 Year
Motor:
Siemens
Inverter:
ABB
Material:
PC, PMMA
Screw:
65mm
LD:
33:1
Warranty:
1 Year
Motor:
Siemens
Inverter:
ABB
Product Description

PC Clear Pipe Production Line, Professional PC ,PMMA Pipe Extrusion Machine

PC Transparent Pipe Production Line

Application:
Widely used in industrial machinery parts ,electronics ,toys ,footwear and other industries

Technical parameter:
S.N Description Qty
1

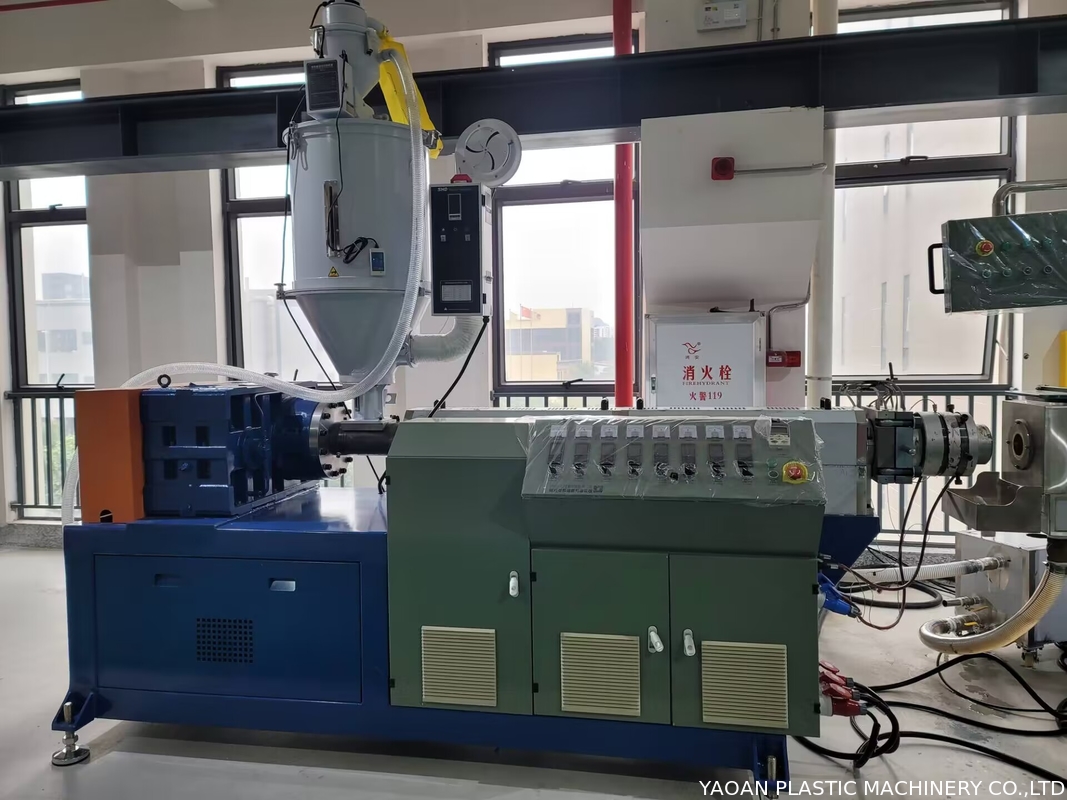

SJ65/34 Single- screw extruder: one set
Screw dia: 65mm
Screw L/D:34:1
Screw type: special screw
Screw diameter: φ65mm,LD:34:1;Material: made of high quality nitride 38CrMoAIA,and are nitration austerely according to NATIONAL STANDARD, nitration hardness:850-950HV;
Barrel: made of high quality nitride steel-38CrMoAI, nitration hardness:950-1050HV;
Main motor power: 22KW
Heater zone: 8 zones
Hopper dyer: one set
Automatic feeding system: one set



1 set
2

PC Extrusion mould:
Mould body: 1 set
Sizing sleeve: copper



1 set
3

AFP-Vacuum Water Cooling Tank
effective vacuum length:6000mm
center height:1050mm±50mm
up and down movement distance±50mm
left and right movement distance±50mm
vacuum pump power:5.5KwX2
water pump power:4.0KwX2
forward and backward movement distance 600mm
forward and backward motor power:1.5KW
Equipped with water level and waer temperature automatic monitoring system
Water tank body adopts stainless steel



1 set
4

AFP- Water Spraying Cooling Tank
effective vacuum length:6000mm
water pump power:4.0KwX1
Water tank body adopts stainless steel



1 set
5

AFP-Haul-off Machine
main motor power:4kw*2 (Inverter control for speed)
suitable pipe rangeФ50-250mm
the bottom pedrail is controlled by a motor for up & down lift, motor power: 0.75kw
the upper pedrail is controlled by pneumatic for up & down lift



1 set
6

AFP-Dustless Saw cutting machine
Cutting blade: knife cutting
Rotary motor power:2.2kW
suitable pipe range:Ф50-250mm
Cutting knife is controlled by pneumatic



1 set
7

AFP-Stacking unit
Effective length:3000mm



1 set

Our Advantages:

1.With special design to the screw ,makes the raw materials reach the good plasticizing and mixin effect
2.Bright and uniform finished product with automatic tempreature control
3.Frequency inverter control
4.High efficiency and energy saving
5.Automatic fixed-length cutting ,easy to operator

PC Transparent Pipe Production Line With Siemens Motor 0PC Transparent Pipe Production Line With Siemens Motor 1PC Transparent Pipe Production Line With Siemens Motor 2PC Transparent Pipe Production Line With Siemens Motor 3PC Transparent Pipe Production Line With Siemens Motor 4



About Us



PC Transparent Pipe Production Line With Siemens Motor 5

PC Transparent Pipe Production Line With Siemens Motor 6

PC Transparent Pipe Production Line With Siemens Motor 7

PC Transparent Pipe Production Line With Siemens Motor 8

PC Transparent Pipe Production Line With Siemens Motor 9

PC Transparent Pipe Production Line With Siemens Motor 10

Packaging and shipping



PACKAGING

plastic film + stretch film + wooden case + drying agent.



DELIVERY

About 120 days (all new parts)



SHIPPING

We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.




What is our service system?



PRE-SALE

a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;



IN PRODUCTION

a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;



AFTER SALE

a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;




Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
