AF-1000mm Extrusion Coating Machine TPU Hot Melt Adhesive Shoe Material

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-1000
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Raw Material: TPU,EVA Coating Layer: 1-2 Layers
Screw: Single Screw Capacity: 100-200kg/hr
Line Speed: 15m/min Warranty: 1 Year
High Light:

Extrusion Coating Machine


AF 1000mm Extrusion Coating Machine


TPU Hot Melt Extrusion Machine

EVA Hot-Melt Adhesive Shoe Material Extrusion Coating Machine


Main characteristic of back counter material coating machine :


1. The main parts such as screw, roller and die are made of 38crmoala, and have given hydro-treating, so they are wearproof and corrosion resistant.


2. Major axis screw is well plastified to guarantee the uniformity of film.


3. Exchanging filter net in die head and adopting up and down device with motor to get convenient operating, thus to improve the production efficiency. (Hydraumatic net changer can be collocated as customers requirement).

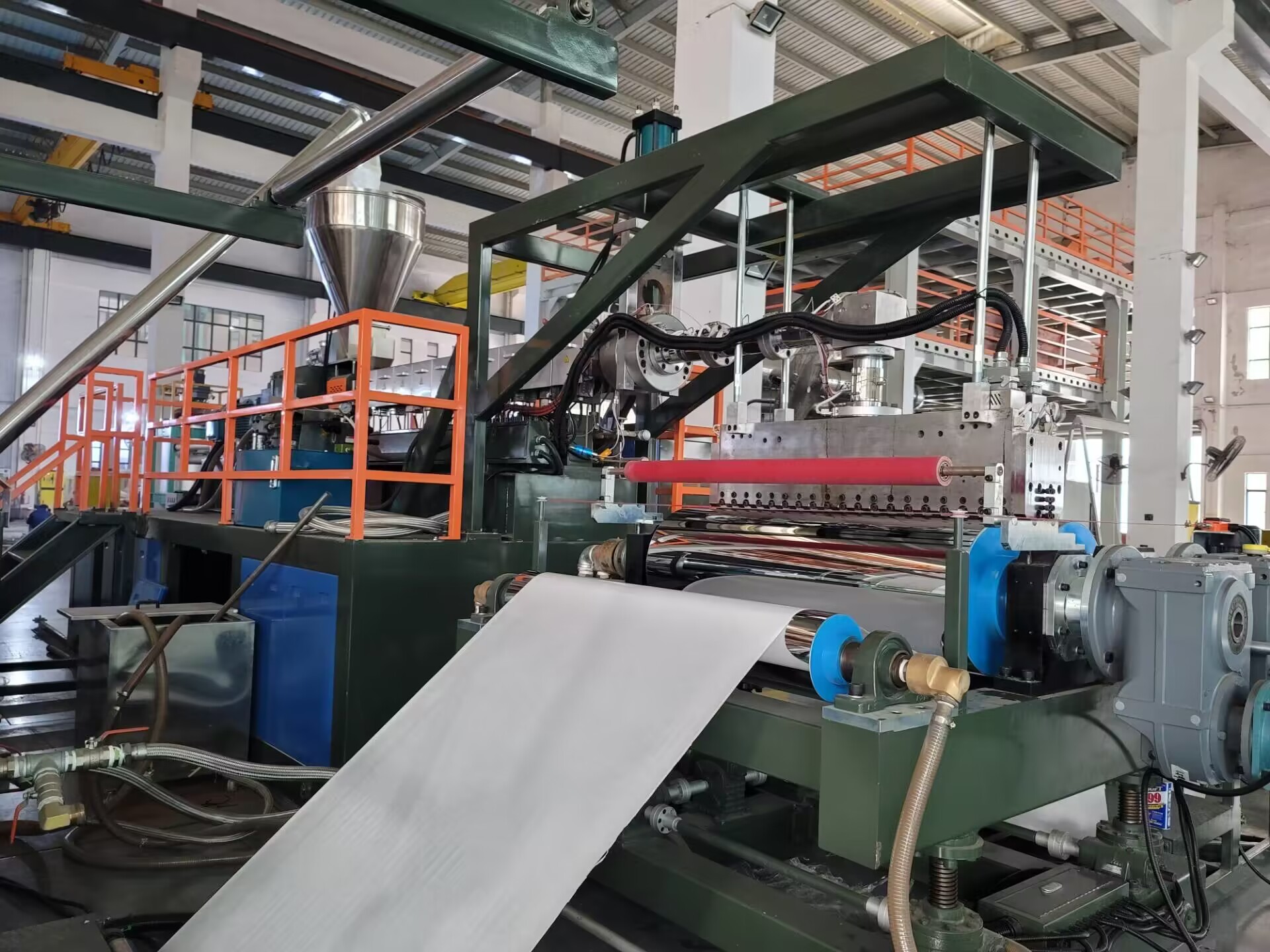

AF-1000mm Extrusion Coating Machine TPU Hot Melt Adhesive Shoe Material 0

Application of back counter material coating machine :


This kind of machine is designed and manufactured by taking the advanced technology from home and abroad. It can be applied in all kinds of shoes materials (box toe material, back counter material nd so on.) , such as hot melt adhesive film, KP, absorbing cloth and so on.


Technical parameters of back counter material coating machine :


Model AF-670 AF-1000 AF-1400
Film width 670mm 1000mm 1400mm
Film thickness 0.3-2mm 0.3-2mm 0.3-2mm
Screw diameter 110mm 115mm 120mm
Main motor power 45kw 45kw 55kw
Max. yield 135kg/h 180kg/h 250kg/h
Total 65kw 80kw 100kw
Overall dimension(L×W×H) 11×2×1.8m 12×2.4×1.8m 13×2.8×1.

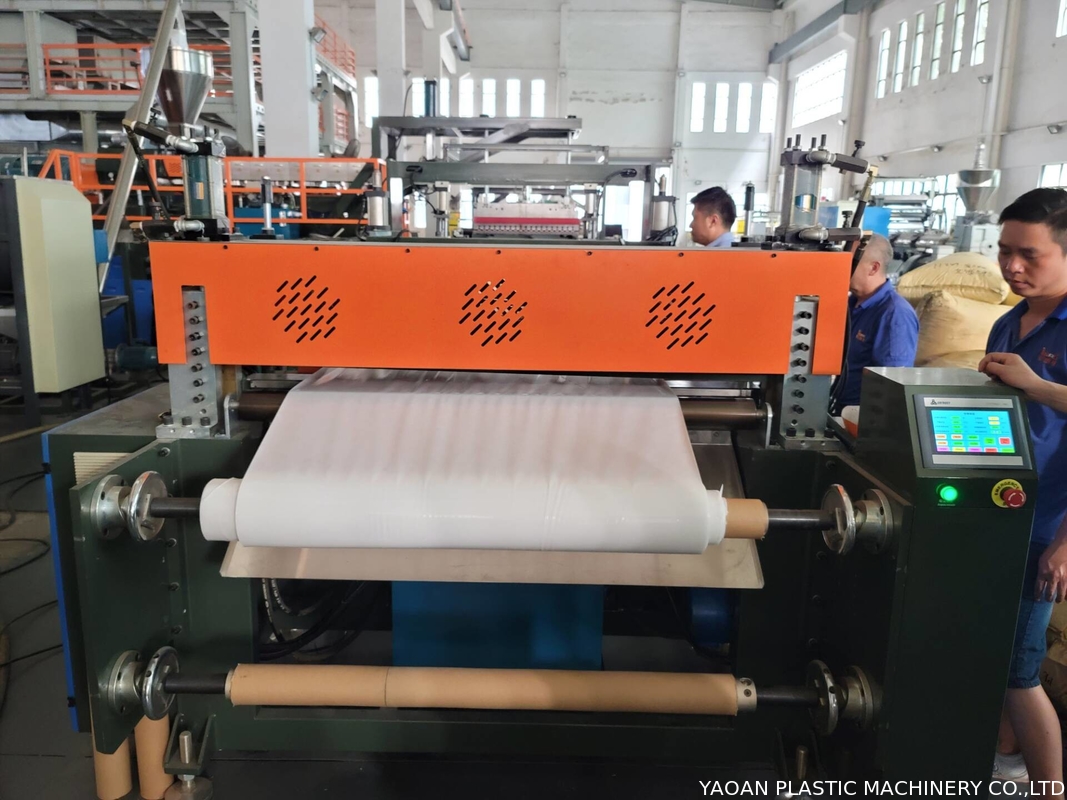

AF-1000mm Extrusion Coating Machine TPU Hot Melt Adhesive Shoe Material 1


Packaging and shipping

PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 50 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.

What is our service system?

PRE-SALE a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed ofthe production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;

1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
