Product Details
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 1000mm
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Material: |
100% PET Flakes |
Capacity: |
300-500kg/hr |
Screw: |
72mm |
LD: |
44:1 |
Motor: |
SIEMENS |
Warranty: |
1 Year |
Sheet Thickness: |
0.2-1.5mm |
Inverter: |
ABB |
Material: |
100% PET Flakes |
Capacity: |
300-500kg/hr |
Screw: |
72mm |
LD: |
44:1 |
Motor: |
SIEMENS |
Warranty: |
1 Year |
Sheet Thickness: |
0.2-1.5mm |
Inverter: |
ABB |
PET Sheet Extrusion Machine For Producing PET Food Box Sheet
I. Parameters
| Model No. | 75-1000 |
| Available material | PET |
| Diameter of screw(mm) | φ72X2 |
| Ratio of screw L/D | 1:44 |
| Max. sheet width(mm) | 1000 |
| Sheet thickness (mm) | 0.2-1.5 |
| Capacity (kg) | 400-500 |
| Power of the whole machine(kw) | 220 |
PET sheet production line equipment is divided into three types: Crystallizing and drying PET sheet production line single screw, Parallel twin-screw vent-free crystal drying PET sheet production line, Venting single screw –free crystal drying PET sheet production line. It can produce single, multi-layer sheet by multi-extruder co-extrusion. Processed materials can be APET, PETG, CPET etc ,the Final Products is Widely used in thermal forming, printing, metal packaging.
*With precision dispenser, evenly stratified and layers adjustable ratio.
*Horizontal tablet structure, operation and maintenance more convenient.
*Roll independent power, line speed and extruder speed synchronization control.
*The machine adopts PLC control, parameter setting, data and the feedback and alarm automation.
Configurations Table
| No. | Machine Name | Quantity |
| 1 | Twin screw extruder | 1 set |
| 2 | Hydraulic screen changer (double column type) | 1 set |
| 3 | Melt pump | 1 set |
| 4 | Mould | 1 set |
| 5 | Three-roll calender | 1 set |
| 6 | Roller temperature control system | 1 set |
| 7 | Cooling stand | 1 set |
| 8 | slicon oven | 1 set |
| 9 | Edge trimming device | 1 set |
| 10 | Waste edge winder | 1 set |
| 11 | Edge crusher (including air conveyed aggregate) | 1 set |
| 12 | Haul-off device | 1 set |
| 13 | Static eliminator | 1 set |
| 14 | Double station winder | 1 set |
| 15 | Full electrical control system | 1 set |
| Optional Auxiliary machines | ||
| 1 | Air compressor | 1 set |
| 2 | Chiller | 1 set |
| 3 | Screw feeder | 1 set |
PET sheet line flow:

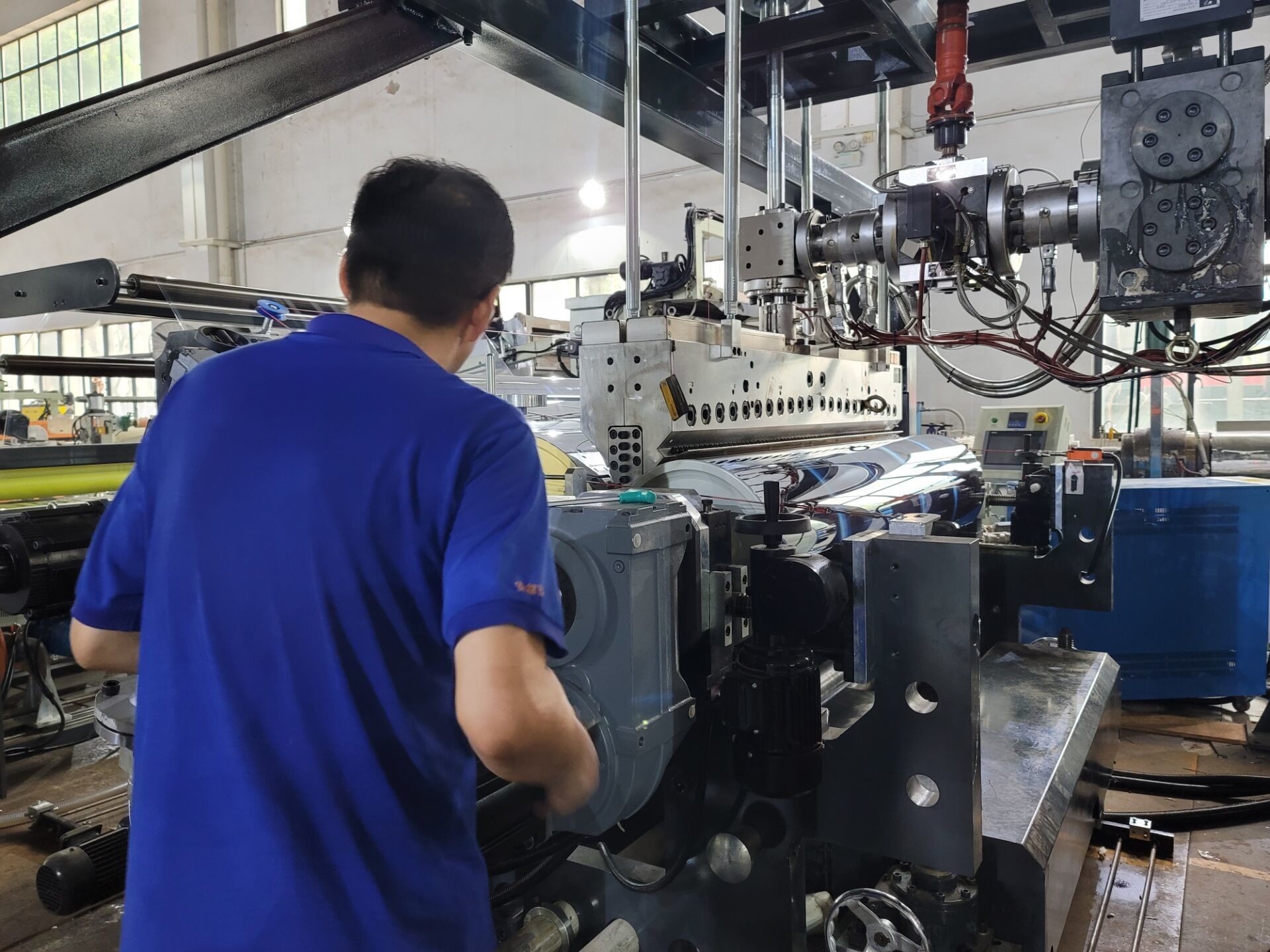

Machine Pictures
About Us
Packaging and shipping
| PACKAGING |
plastic film + stretch film + wooden case + drying agent.
|
| DELIVERY |
About 90 days (all new parts)
|
| SHIPPING |
We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
|
What is our service system?
| PRE-SALE |
a. Detailed machine introduction;
|
| IN PRODUCTION |
a. Supply layout drawing to clients for preparation;
|
| AFTER SALE |
a. Send engineers to overseas for installation ,commissioning and training;
|
Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
