PET Board / PET Sheet Single Screw Extrusion Machine 25mm Thickness

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: AF-50

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price
Product Details
High Light:

25mm Thickness PET Board Extrusion Machine


PET Sheet Single Screw Extruder


PET Board Single Screw Extruder

Machine Color:
Any Color
Screw Type:
Single Screw
Sheet Thicknes:
Machine Color:
Any Color
Screw Type:
Single Screw
Sheet Thicknes:
Product Description

PET Super Thick Board Extrusion Machine ,High Impact Plastic PET Sheet For Machinery 20mm- 30mm


PET Sheet

Thick: 20-30mm

W*L(mm):610*1000 1000*2000

Type: Sheet, board, plate, rod.


Color Size(mm) Thickness(mm)
White PET Sheet 610 20-30


Good mechanical properties and rigidity, and close to the metal material. It’s an ideal replacement material of copper, cast zinc, steel, aluminum and other metal materials. Excellent fatigue resistance and creep resistance. Good abrasion resistance, self-lubricated and friction. High thermal stability, good chemical stability and excellent electrical insulation. And it can be used in temperatures ranging from -50°C to +110°C.


1. High surface hardness, low abrasion consumption, impact fatigue and shock resistance, low coefficient friction, and self-lubricating, therefore, it is the first material choice for manufacturing gear
2. High mechanical strength and rigidity. Although the contraction rate is high, the dimension is stable
3. Good dielectric properties, solvent resistance, non-stress cracking, no porosity.

4. Torsional resistance, it can be restored to the original shape when removing the external force
5. Low water absorption


1. Machinery industry used to produce gears, springs, bearings, wheels, connecting rod, impeller blades etc..
2. Automobile industry
3. Electronic and electrical appliances
4. Others such as toys, windows, water tanks and washing basins


Machine specifications

Φ50mm extruder: one set

Screw diameter: 50mm

Screw L/D: 28:1

Screw type: special screw

Gear box: one set

Control power: 22KW

Control style: frequency conversion

Thermostat zones: 11 zones

Radiator zones: 4 zones

Electrical control box: one set


Extrusion mould: one set

Cooling style: cold by water


Stand for nature air cooling: one set

Length: 10 meters

Material: stainless steel


Saw cutting machine: one set

Motor power: 5.5kw


Stacking machine: one set

Length: 3 meters

Material: stainless steel


Capacity: 30-50kg/hr

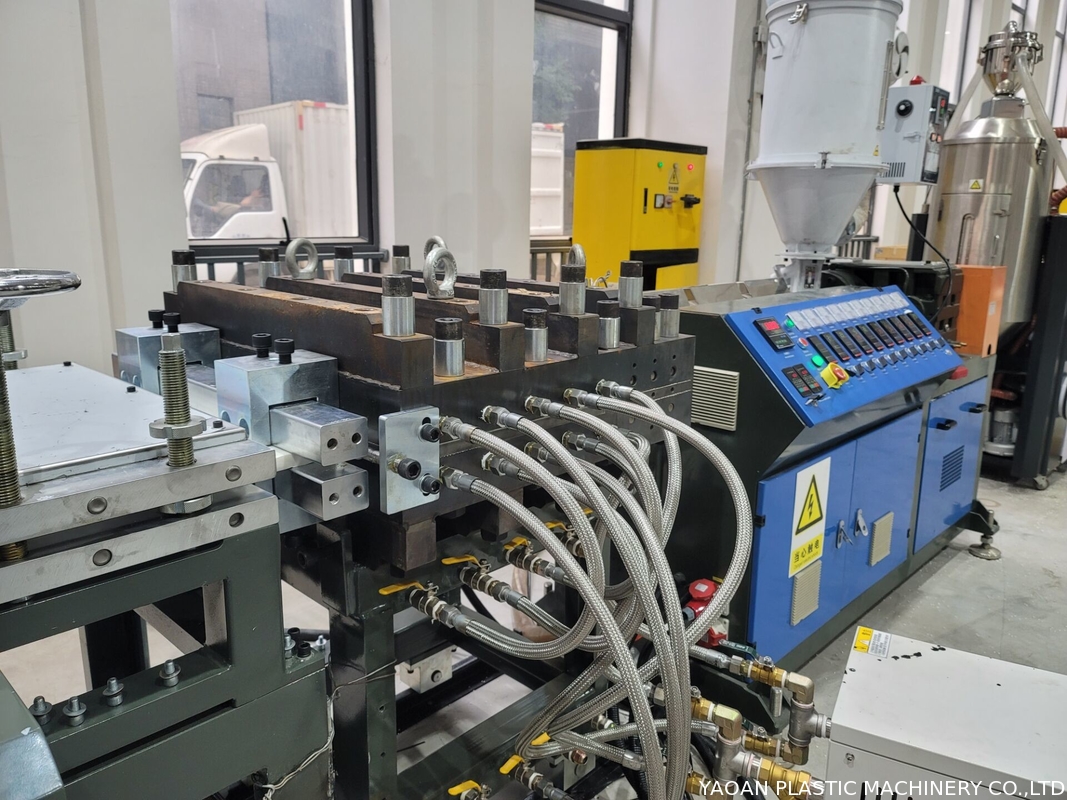

PET Board / PET Sheet Single Screw Extrusion Machine 25mm Thickness 0

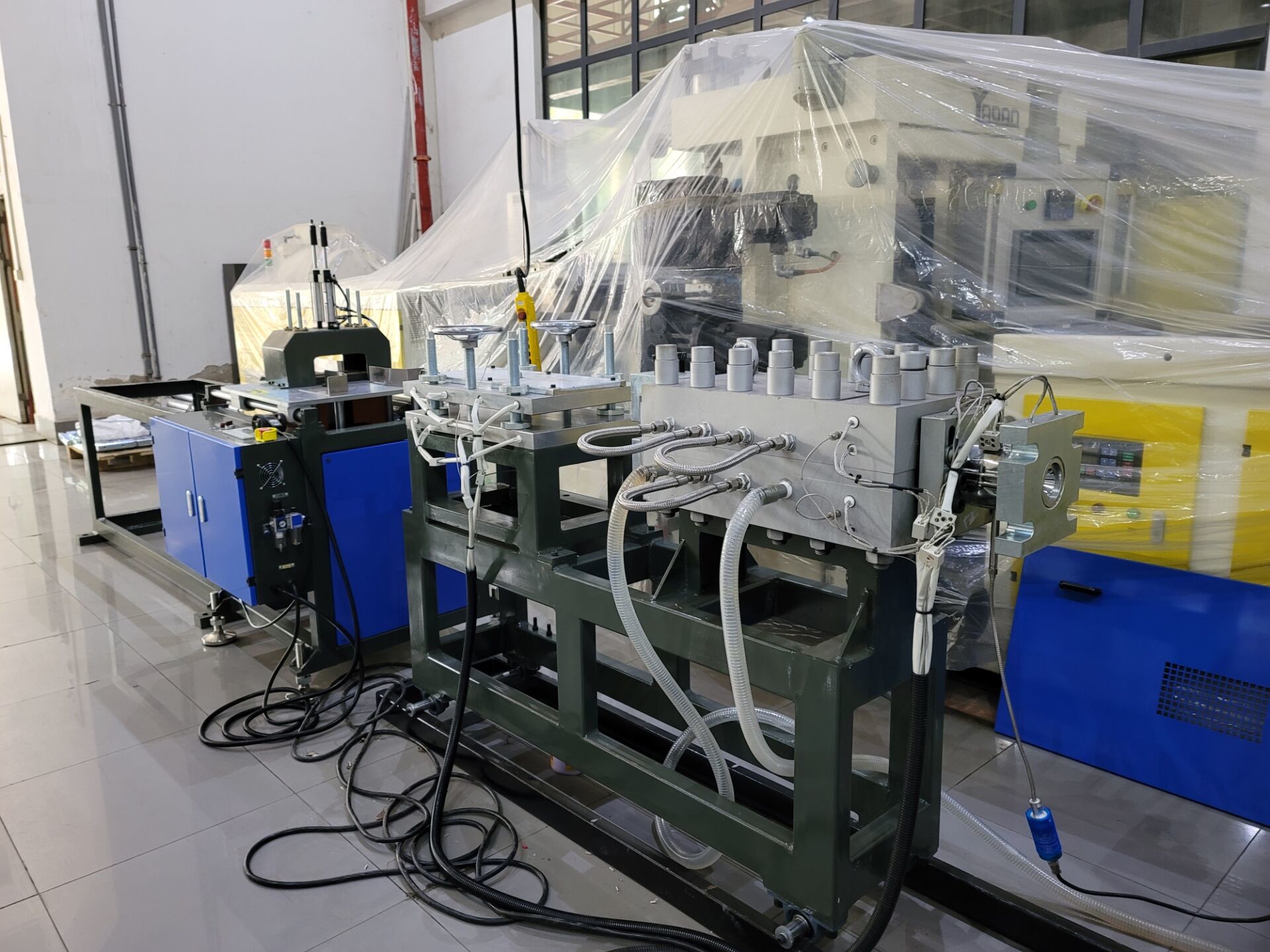

PET Board / PET Sheet Single Screw Extrusion Machine 25mm Thickness 1

Packaging and shipping

PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 60 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.

What is our service system?

PRE-SALE a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;

1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
