Home > products > Plastic Sheet Extrusion Machine > APET PET Plastic Sheet Extrusion Machine ,Thermoforming Sheet Extrusion Line

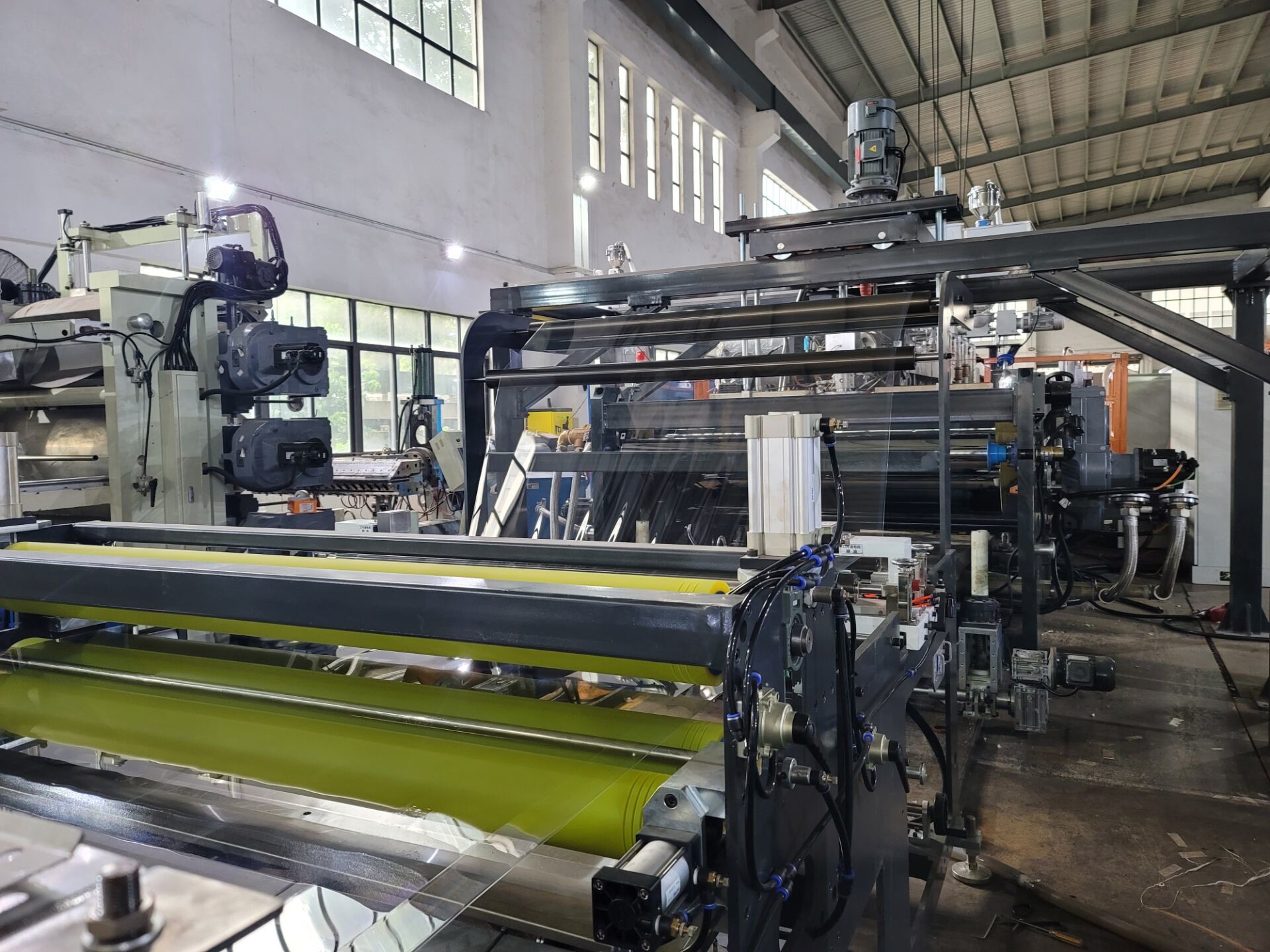

APET PET Plastic Sheet Extrusion Machine ,Thermoforming Sheet Extrusion Line

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: AF-72

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price
Product Details
High Light:

APET Plastic Sheet Extrusion Machine

,

Thermoforming Sheet Extrusion Line

,

PET Plastic Sheet Extrusion Machine

Material:
PET Flakes
Inverter Brand:
ABB
Capacity:
400-600kgs/Hr
Warranty:
One Year
Sheet Quality:
Super Flat And Shining
Applications:
Thermoforming
HS Code:
8477209000
Thickness:
0.20-1.5mm
Computerized:
Siemens PLC
Dimension:
22000*5000*3000mm
Material:
PET Flakes
Inverter Brand:
ABB
Capacity:
400-600kgs/Hr
Warranty:
One Year
Sheet Quality:
Super Flat And Shining
Applications:
Thermoforming
HS Code:
8477209000
Thickness:
0.20-1.5mm
Computerized:
Siemens PLC
Dimension:
22000*5000*3000mm
Product Description

PET Non-crystallization parallel twin screw extrusion system
Free crystallizer & dehumidifier, high output capacity, global-class SIEMENS operating system and PLC control system, automatic plastic PET sheet extrusion machine.

Machine features:

  • Independent R & D extruder, consist screw barrel and screw elements. The screw elements can be changed according to different material condition. APET, PETG, RPET, CPET, all different PET material can be used, even the mixed PET material. The special feeding unit makes 100% bottle flakes material possible and ensure the output capacity.
  • Equipped with powerful vacuum system, working with natural exhaust zone together. Not only exhaust the moisture of material in the extruder, but also remove the impurities of material.
  • The high-quality sheet, with good performance, high toughness, no rippling, no spot. With good tensile property even thermoforming the deep cup.
  • The silicone coating unit or professional coating machine can be chosen for food sheet and electric sheet.

Three roller calender

  • High-precision roller, mirror surface, ensure the smooth sheet surface.
  • Big size water tube makes the water flow faster from left to right. To ensure the cooling effect of roller.
  • SIEMENS servo motor and SIEMENS servo control system, more credible, stable and efficient.
  • The unique function of “key to acceleration” can realize low speed adjustment, high speed production without fluctuation, greatly reduces the waste of raw materials during machine adjusting.

Winding system

  • Have two types of winding systems, one is common manual work winder, another one is complete automatic winding system.
  • The winder equipped with Servo motor.
  • The automatic winding system, auto sheet cutting, auto sheet loading. Two rolls winding by same air shaft possible.
  • 3 inches and 6 inches air shaft using is possible by same auto winder, and change the cutting knives automatically.
  • Intelligence, simpleness, stability, efficiency. Adopt SIEMENS S7-1500 controlling system, equipped with SIEMENS frequency, SIEMENS servo for drive part. Through the Profinet network link control.
  • The 100M/s high-speed network transmission.
  • Centralized control, browse all parameters of all parts in one screen, such as current, pressure, speed, temperature, etc.
  • Only one HMI screen for the complete sheet making machine, makes the operation easier.

Widely used in food container, fruit packaging, electronics packaging, seeding trays, face shield, furniture, and other thermoforming product. Also can be used for roofing sheet. But the food related sheet making and electronic sheet cannot be produced by same machine.

APET PET Plastic Sheet Extrusion Machine ,Thermoforming Sheet Extrusion Line 0

APET PET Plastic Sheet Extrusion Machine ,Thermoforming Sheet Extrusion Line 1

APET PET Plastic Sheet Extrusion Machine ,Thermoforming Sheet Extrusion Line 2

Final applications:

APET PET Plastic Sheet Extrusion Machine ,Thermoforming Sheet Extrusion Line 3APET PET Plastic Sheet Extrusion Machine ,Thermoforming Sheet Extrusion Line 4APET PET Plastic Sheet Extrusion Machine ,Thermoforming Sheet Extrusion Line 5

Packaging and shipping



PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 100 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.


What is our service system?



PRE-SALE a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;


Why choose YAOAN MACHINERY?


1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
