100% Degradable PLA Sheet Parallel Twin Screw Extrusion Machine

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: 1000mm

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price
Product Details
High Light:

pet sheet extrusion line

,

plastic sheet manufacturing machine

,

PLA Sheet Twin Screw Extrusion Machine

Material:
PLA
Capacity:
300-500kg/hr
Screw:
72mm
LD:
44:1
Motor:
SIEMENS
Warranty:
1 Year
Material:
PLA
Capacity:
300-500kg/hr
Screw:
72mm
LD:
44:1
Motor:
SIEMENS
Warranty:
1 Year
Product Description

100% Degradable PLA Sheet Parallel Twin Screw Extrusion Machine



I. Parameters

Mode No. 72-1000
Available material PLA
Diameter of screw(mm) φ72X2
Ratio of screw L/D 1:40
Max. sheet width(mm) 750
Sheet thickness (mm) 0.2-1.8
Capacity (kg) 400
Power of the whole machine(kw) 220



Polylactic acid (PLA) is a new biodegradable material and biodegradable material, which is made of starch from renewable plant resources (such as cereal chaff, straw and straw). The starch raw material is glycosylated to glucose, which is fermented by glucose and certain strains of bacteria to produce high purity lactic acid, and the polylactic acid with certain molecular weight is synthesized by chemical synthesis. It has good biodegradable properties, use after can be in the nature of microbial degradation under certain conditions completely, the resulting carbon dioxide and water, polluting the environment, it is very good for the environment, is recognized as environmentally friendly material



II. Function

1. Available material: PLA.
2. Extruder is designed with double vacuum system to vent water very fast.
3. Close-circuit control ans servo-rolls contron system.
4. Integration of machinery, PLC control, parameter setting, alarm feedback and automatic control.
5. Convenient operation & excellent function.

III. Main Fittings

1. Electric Fittings: Yatai PID Self-adjusting Automatic Temperature Control Meter, Schneider

Pushbutton, Selector Switches, Pilot Lights, Contactor and Thermal Overload Relay, Korea LG Circuit-breaker;
2. Lubricating System: Taiwan Famous Automatic Oiling System;
3. Pneumatic System: Japan SMC;

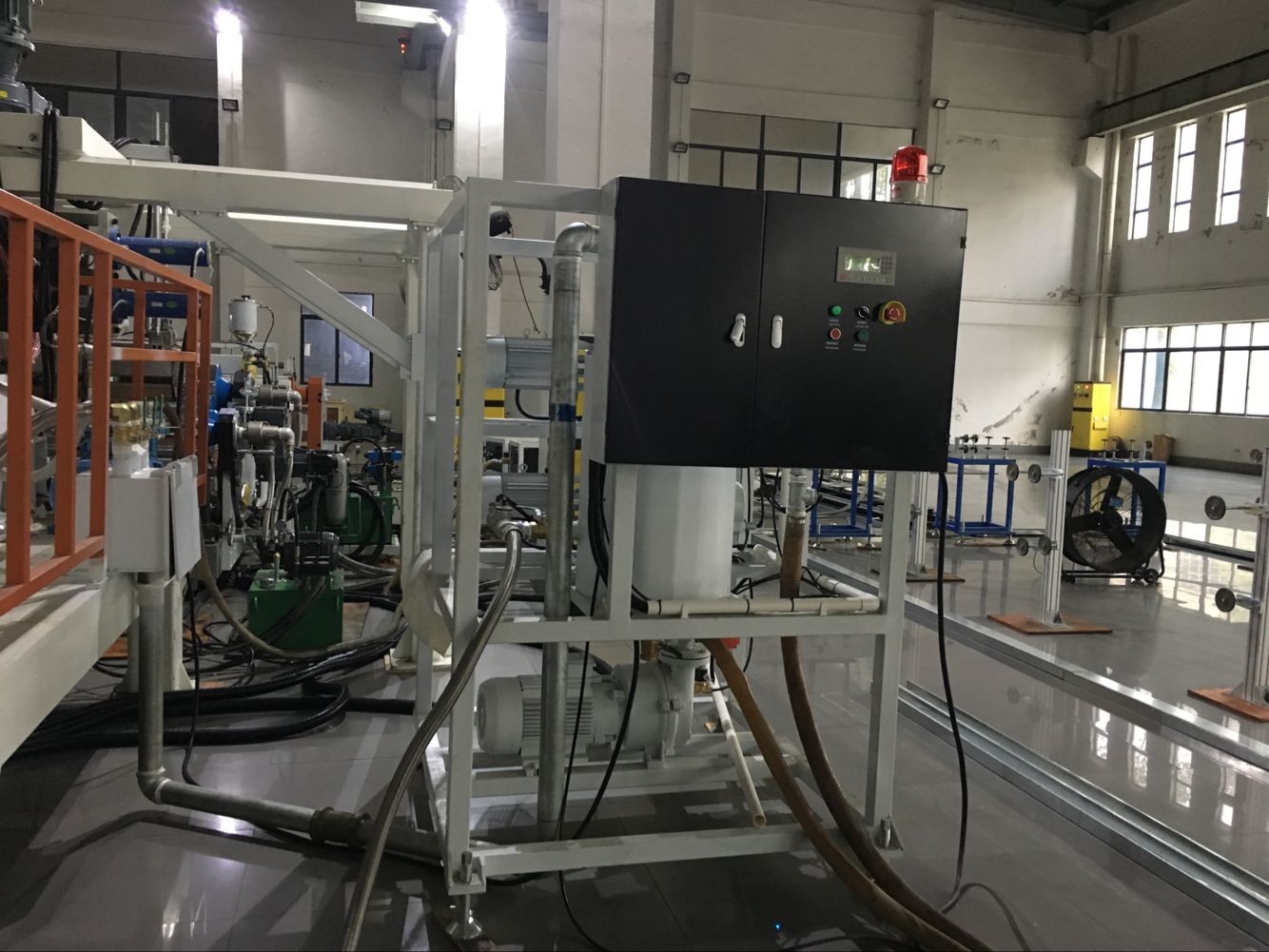

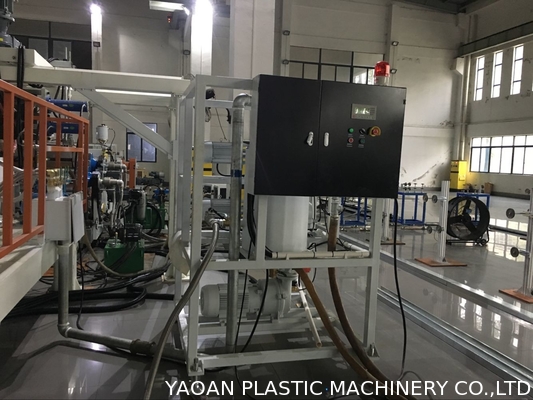

Machine Pictures

100% Degradable PLA Sheet Parallel Twin Screw Extrusion Machine

100% Degradable PLA Sheet Parallel Twin Screw Extrusion Machine



Packaging and shipping



PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 100 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.


What is our service system?



PRE-SALE a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;


Why choose YAOAN MACHINERY?


1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
