Low Noise Packing Belt Strapping Band Machine , Pp Strap Manufacturing Machine

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 65mm
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Plastic Processed: PP Screw Design: Single-screw
Application: Bale Warrany: 1 Year
Screw: 65mm LD: 28:1
High Light:

pet strap production line


pet strapping band production line

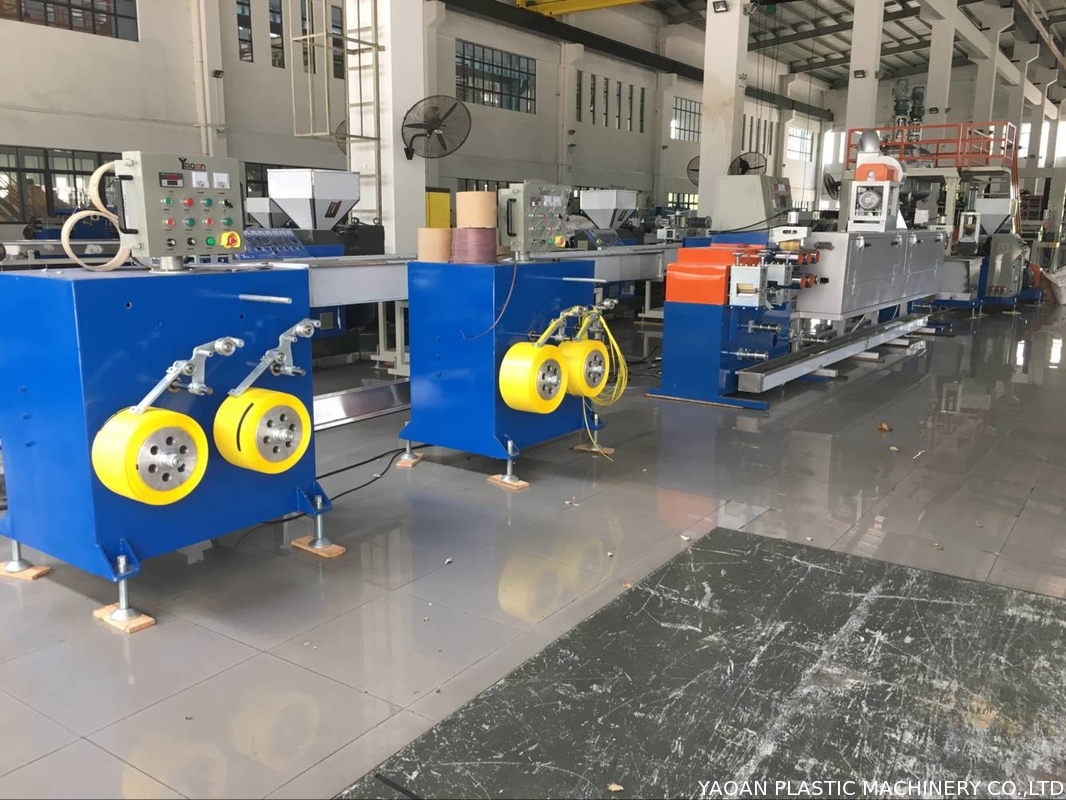

Low Noise Packing Belt Strapping Band Machine , Pp Strap Manufacturing Machine


PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.


Machine Advantages of pp strap making machine

1. This line is specially designed for the production of PP Straps. It can produce 2 PP Straps at the same time that saves energy by 20%-30%;

2. Both the Shaping Water Tank and Calibrating Tank are made of stainless steel that the tanks are long-lived;

3. PLC Controller by touching keys with alternative languages, which is safe and easy to operate that keeps good status of all part and ensures the stable performance of whole line and continuous production of PP Straps.


Technical Parameter:

Processing Materials:PP Recycled Flakes or Granule


Power: 3-phase 380V 50Hz


Low Noise Packing Belt Strapping Band Machine , Pp Strap Manufacturing Machine 0

PP strap making machine model


Model SJ-65 SJ-75 SJ-90
Extruder SJ-65/30 SJ-75/33 SJ-90/33
Productivity 60-100kg/h 80-120kg/h 120-150kg/h
Drive Motor 22kw 30kw 55kw
Two-station Winder 60-120m/min,adjustable
Strap Size Width:5mm-20mm Width:10mm-25mm Width:20mm-35mm
Thickness:0.36mm-1.0mm Thickness:0.5mm-1.3mm Thickness:0.5mm-1.8mm
Installed Capacity about80kw about 90kw about110kw
Line Dimension 30m×2m×2.2m (L×W×H) 30m×3m×4.5m (L×W×H) 30m×5m×6m (L×W×




1) PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;


2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;


5) Low Energy consumption, but high production capability;


6)Easy to operate, save the manpower and two persons for one production line on average
