Home > products > Plastic Sheet Extrusion Machine > High Speed Plastic Sheet Extrusion Machine For Luggage / Household Furniture

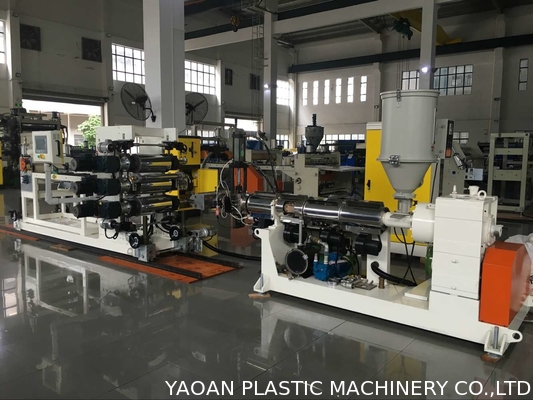

High Speed Plastic Sheet Extrusion Machine For Luggage / Household Furniture

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: AF-120

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price
Product Details
High Light:

pet sheet extrusion line

,

plastic sheet manufacturing machine

Material:
PC ,ABS
Motor Brand:
Famous Brand
Inverter Brand:
ABB
Capacity:
200-300kgs/hr
Warranty:
One Year
Quality Grade:
Class A
Material:
PC ,ABS
Motor Brand:
Famous Brand
Inverter Brand:
ABB
Capacity:
200-300kgs/hr
Warranty:
One Year
Quality Grade:
Class A
Product Description
ABS Sheet Extrusion Machine For Luggage, Household Furniture, Automotive Interiors, Packaging Applications


Main parameters:

Processed material: ABS resin, or regrind

Width of the sheet: 900mm

Sheet thickness: 1.5-4mm

Production line dimension:18000mm×8000mm×3000mm

Machine voltage: 380V/50HZ



1.0 Φ120*35 single screw extruder: 1 set

200KG hopper dryer: one set

Gearbox: (one set)

The body of the gearbox is made from cast steel. The teeth deal with grinding and peeling eventually, which provides damping, antifriction, low-noise, long using period etc. characteristics.

Screw: (one set)

Diameter:120mm

Screw structure: Vented

Material: High quality nitrided alloy steel-38CrMoAIA,

Treatments: Nitration hardness≥ 740HV; Nitration depth: 0.3-0.6mm; fragility is 2 grades.

Barrels: (one set)

Material: High quality nitrided alloy steel-38CrMoAIA

Treatments: Nitration hardness≥ 940HV; Nitration depth: 0.4-0.7mm; fragility is 2 grades

Motor power: 165kw (A.C MOTOR)



2.0 Single flow, double hole screen changer: 1 set

Its special internal structure provides a excellent seal effect

The parts of Screen changer consisting the mould are made of alloy steel, which experienced heat treatment strictly.

Control style: complete hydraulic pressure



3.0 Sheet T-die: 1 set

Material of the mould board is heat resistance alloy steel imported, experienced hardness treatment for the mould board, and the surface of the flow tunnels are plated rigidity chrome and polished; the appearance of the mould is in decorating plated chrome. It adopts the heating inside by bar heaters.

Total heating power for the flange: 3kw

The effective width of the mould: 1200mm

The effective product width:900mm (both sides have decking units, can produce 500mm width product)



4.0 Calender roller stack: 1 set

Structure: vertical

Diameter of roll:450mm

Roll length:1200mm

Wall thickness of the roller: ≧28-30mm

Centre flat depth:5mm

Roll material: alloy

Hardness excluding the surface: HRC60-65(2-3mm)



5.0 Single side fillm laminating unit: 1 set

Hot laminating: one set ( double shafts)

Stair: one set



6.0 Protection film laminating frame: 1 set

Protection film frame: one set

Steel roller: 1 pc

Rubber roller: 1 pc



7.0 Cooling stand: 1 set

Guide roller: 16 pcs

Diameter of the rollers: Φ68mm

Roller surface treatment: plated chrome and half-mirror polishing

Surface treatment: hard chrome plating and half-mirror treatment

Roller length: 1200mm

Cooling length stand length: 6m



8.0 Take-up machine: 1 set

Steel roller: 1 pc

Steel roller diameter:Φ240mm

Steel roller surface treatment:hardness chrome plating and polishing to half mirror.

Rubber roller: 1 pc

Rubber roller diameter::Φ240mm

The lenght of roller: 1200mm

The surface of treatment of the rubber rollers: corrosion resisting, polishing the rubber

The reducer adopt SEW brand

Equipped with a 3.0kw inverter

Equipped with a synchronousadjusting system with calender rollers,also equipped a individual adjusting system of take up machine



9.0 Cutting Machine or Winding Machine: 1 set





10.0 Vertical electric control cabinet: 1 set

Large scale cabinet, including locks, Security identity

12 inch control panel: one set (Siemens)

Siemens PLC (Siemens)

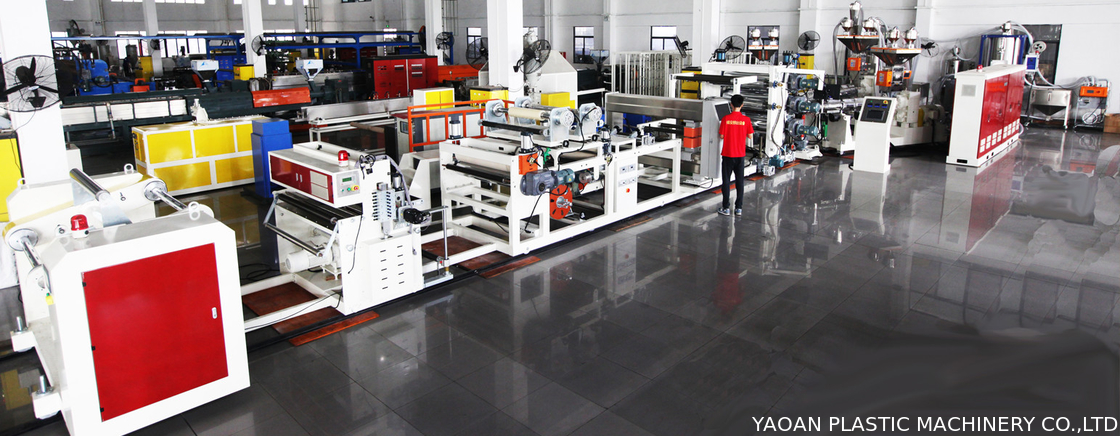

High Speed Plastic Sheet Extrusion Machine For Luggage / Household Furniture 0



FAQ

1. Q: Are you a factory or trading company?

A: We are a factory and giving you the quickest reply in 24 hours.

2. Q: What's your company mainly in?

A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 30 years.

Other machines have included machines in production line, such as luggage edge cutting machine and punching machine.

(We can produce total production line. )

3. Q: What's the material should have for our extruder machine( produce luggage purpose)

A: ABS. PC. PP.PE.PS.PET.HIPS granulates etc plastic material can do.

4. Q: How's your strength of your company?

A: Has a group of senior technical personnels, strong technical force, we have the

whole running system, including design, development, production, installation,service.

One year quality guarantee, life-time service.

5. Q: If your company has passed some certificates?

A: Yes, we have passed CE, ISO.
