PET PETG Sheet Extrusion Equipment , Pp Sheet Extruder 300-500kg/Hr Capacity

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 1000mm
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Material: PET Flakes Capacity: 300-500kg/hr
Screw: 120mm LD: 30:1
Motor: SIEMENS Warranty: 1 Year
High Light:

pet sheet extrusion line


plastic sheet manufacturing machine

PET, PETG Sheet Extrusion Machine, CE Certificated, ISO9001, No Yellow, Clear Sheet



PETG is called low temperature PET, it’s a new environment-friendly packing material with features such as high luster, good transparency excellent barrier property self adhesion which is used for glue bonding and high frequency processing.

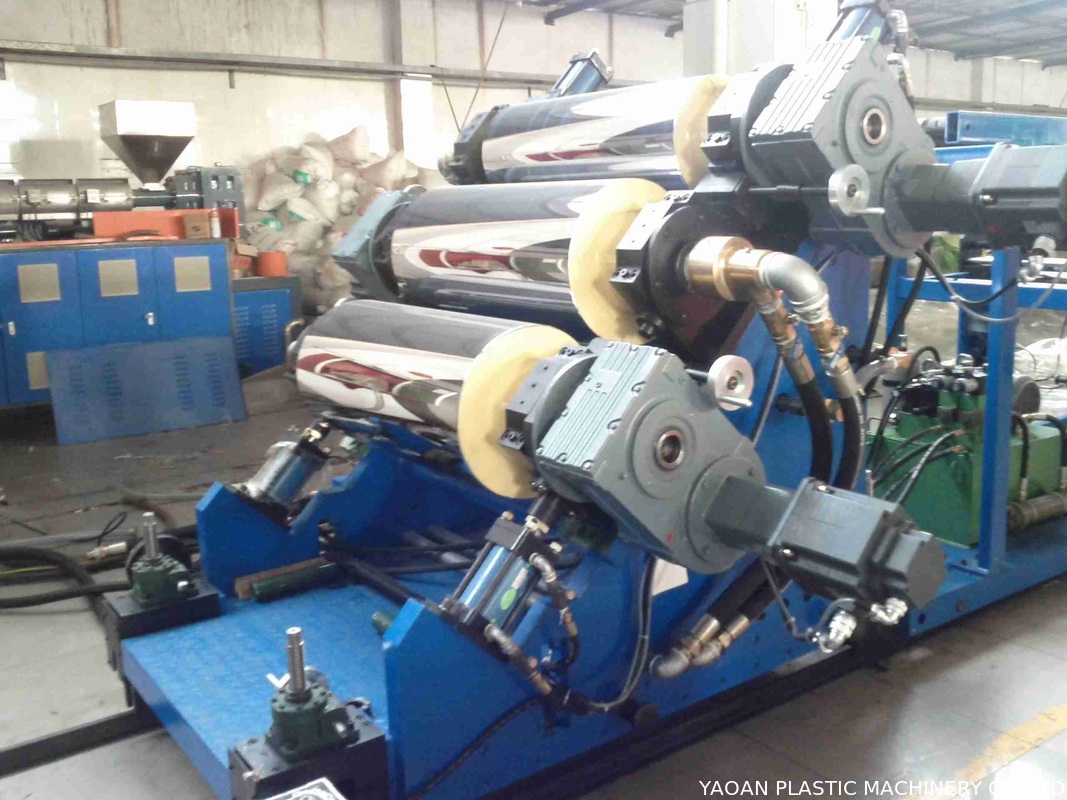

Twin Screw Dyer-free Vented PET Sheet Extrusion Line

The parallel twin screw extrusion line for PET sheet, this line equipped with degassing system and no need drying and crystallizing unit. The extrusion line has the properties of low energy consumption, simple production process and easy maintenance. The segmented screw structure can reduce the viscosity loss of PET resin, the symmetrical and thin wall calendar roller heighten the cooling effect and improve the capacity and sheet quality. Multi components dosing feeder can control the percentage of virgin material, recycling material and master batch precisely, the sheet is widely used for thermoforming packaging industry.


It’s one of the most advanced production lines with matured technology and stability in China. Compared with other same kind equipment, it’s over 30% higher in overall efficiency. Line is suitable for PS, PP, PE as well.


Ø Model and Specification

Model Matched Extruder Product Thickness Product Width Main Motor Power Output
- mm mm kw Kg/h
PET-S1000(single) SJ 75-40 0.15-1.5 1000 110 450

SJ 75-40

TSK 35-40

0.2-1.5 1000



PET-S1200 SJ 95-40 0.2-1.5 1200 160 800


The specifictions show in the above table are only for references. Please contact with us to determine your final requirements.
