AF-300mm CA Cellulose Acetate Shoelace Jogger Lace Tipping Film Sheet Extrusion Machine

Product Details

Place of Origin: CHINA

Brand Name: YAOAN

Certification: CE

Model Number: 50

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOODEN BOX

Delivery Time: 30-90 DAYS

Payment Terms: TT,LC

Supply Ability: 100 SETS PER MONTH

Get Best Price
Product Details
Highlight:
Material:
CA
Screw Size:
65mm
LD:
28:1
Warranty:
1 Year
Motor:
SIEMENS
Inverter:
ABB
Machine Name:
CA Film Machine
Application:
Shoelace Tip Film
Material:
CA
Screw Size:
65mm
LD:
28:1
Warranty:
1 Year
Motor:
SIEMENS
Inverter:
ABB
Machine Name:
CA Film Machine
Application:
Shoelace Tip Film
Product Description
CA Cellulose Acetate (CA) Film Extrusion Production Line

This advanced extrusion line is designed for manufacturing high-quality cellulose acetate (CA) thin films/sheets, widely used in shoelace tips, footwear/fashion accessories, and industrial applications. The system delivers exceptional versatility, producing transparent, black, tea-brown, and custom-colored films with superior surface printability.
AF-300mm CA Cellulose Acetate Shoelace Jogger Lace Tipping Film Sheet Extrusion Machine 0
**Key Components & Process Flow**

1. Single-Screw Extruder: Equipped with precise temperature control (120–220°C) and a homogenizing screw design, ensuring stable melting and mixing of CA resin.
2. Flat Die: Adjustable lip gap (0.2–0.5mm) enables uniform thickness distribution across 300–500mm widths.

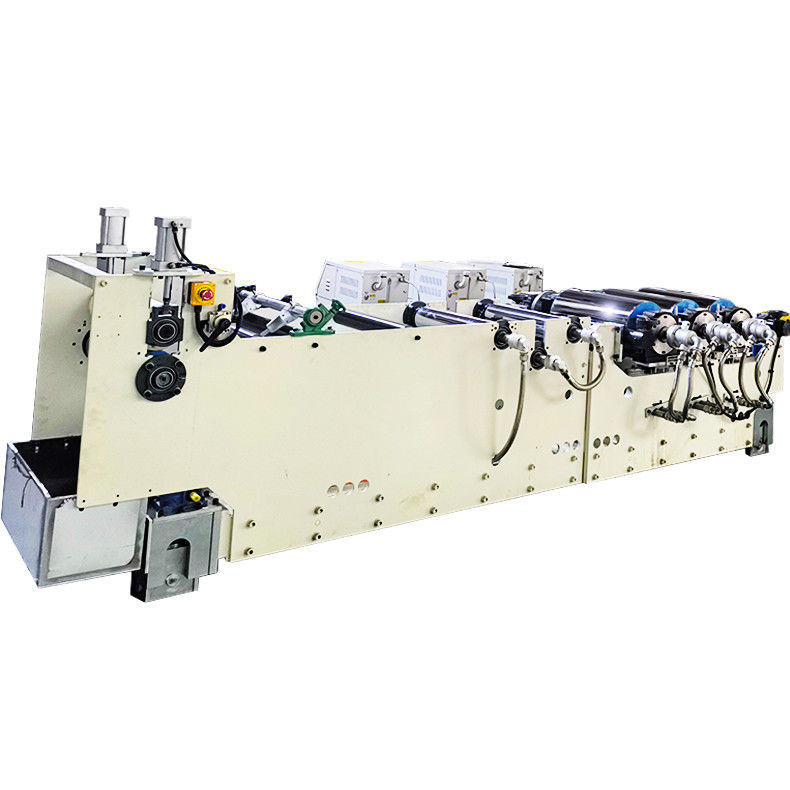

3. Three-Roller Calendering System: Polished chrome rollers (temperature-controlled: 60–100°C) refine surface smoothness (Ra ≤0.2μm) and thickness tolerance (±0.02mm).
4. Air-Cooling Conveyor: Gradual cooling minimizes internal stress, enhancing optical clarity and dimensional stability.
5. Tension-Controlled Haul-Off & Winding Unit: Ensures wrinkle-free winding with adjustable speed (5–30m/min) for rolls up to 600mm diameter.

**Product Specifications**
- Thickness: 0.2–0.5mm (customizable)
- Width: 300–500mm (adjustable via die shims)
- Colors: Transparent, black, tea-brown, or custom pigmented
- Surface: Glossy/matte finish options; compatible with UV/inkjet printing
AF-300mm CA Cellulose Acetate Shoelace Jogger Lace Tipping Film Sheet Extrusion Machine 1
**Applications**
- Footwear: Durable shoelace tips, decorative straps, reinforcement films
- Fashion Accessories: Printed labels, ornamental films, flexible buckles
- Industrial: Die-cut gaskets, protective coatings, specialty packaging
AF-300mm CA Cellulose Acetate Shoelace Jogger Lace Tipping Film Sheet Extrusion Machine 2
**Advantages**
- High Efficiency: Output up to 150kg/h (depending on thickness).
- Precision Control: ±0.01mm thickness consistency for print-ready surfaces.
- Eco-Friendly: CA films are biodegradable and low-VOC.
- Flexibility: Rapid color/formula switching for small-batch orders.
AF-300mm CA Cellulose Acetate Shoelace Jogger Lace Tipping Film Sheet Extrusion Machine 3AF-300mm CA Cellulose Acetate Shoelace Jogger Lace Tipping Film Sheet Extrusion Machine 4
AF-300mm CA Cellulose Acetate Shoelace Jogger Lace Tipping Film Sheet Extrusion Machine 5
Ideal for manufacturers seeking to produce sustainable, print-compatible films with premium aesthetics and functionality. Contact us to customize solutions for your specific needs!



AF-300mm CA Cellulose Acetate Shoelace Jogger Lace Tipping Film Sheet Extrusion Machine 6



Packaging and shipping

PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 90 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.

What is our service system?

PRE-SALE a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;



Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
