Double Screw Extruder Plastic Recycling Pellet Machine 100-1000kg/Hr Capacity

Parallel Co-rotating Twin Screw Extruder Line For PE, PP, ABS, AS, PA, EVA, PET Materials

• Mixing nature-changing: PE,PP,PS+SBS;PA+EPDM;PP+NBR;EVA+Silicon rubber,etc.

                    PE,PA,PC,CEP+ABS(alloy);PBT+PET;PP+PE,etc.

• Filling nature-changing: PE,PP,EVA etc+aluminum hydroxide,magnesium hydroxide,antimony oxide.

                    PP,PA,ABS+ferrous powder, sulphuric powder, ceramic powder

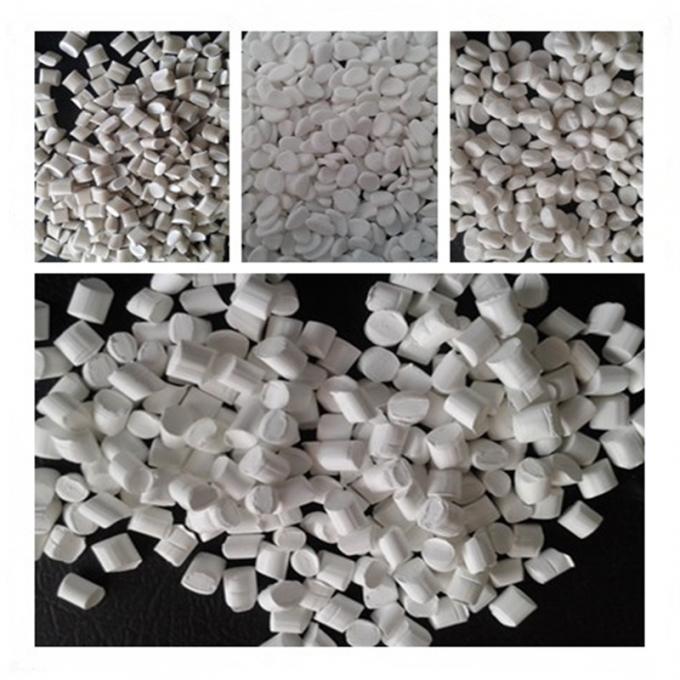

• Colored machine pellets: PE,PP,ABS,AS,PA,EVA,PET etc+long fires,small fibres, carbon fibres, crystals and so on, etc.

2. Features of extruder

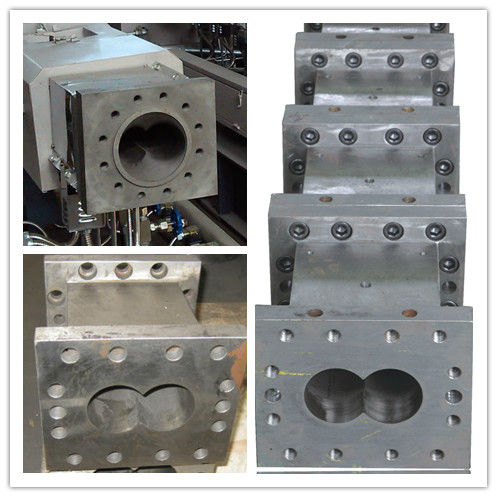

 (1) Barrel

• euro-style rectangle barrl, reflux refrigeration channel is optimized and disposed,which makes temperature difference in D areas smaller.
• innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.
• the material  is used high quality nitrided steel ,corrosion proof or antifriction with correspounding process.

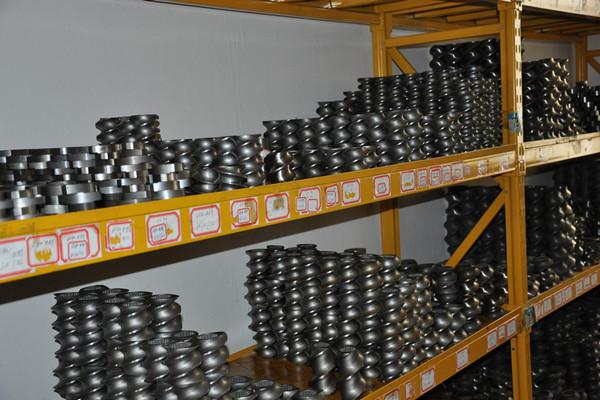

(2) screw

---.the screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2 by special heat-treatment , which is possessed with high corrosion-resistat and high functions

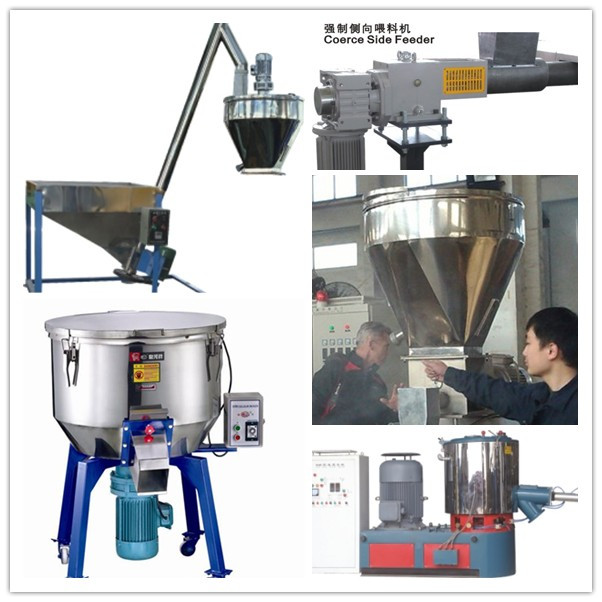

(3)metering feeders

• various metering feeders --- single screw ,twin screw ,hollow screw,forced-feeding, side-    feeding.

(4) new-style gear transmission system

• new-style project of parallel three-axises driving makes the conve axis,convey
• chain,decelerate and torque get together ,which keep it compact ,and the key bearings are imported
•  soakage and spraying lubriation integrate smoothly
• technics,strengthening of tooth face,so they can ensure high torque,high precision and     low noise
• the selecte material of drive components is dainty,including super intention alloy cementiteing steel,cementiting and grinding.

(5) electric  control cabinet

• frame structure control cabinet
• imported electrical elements
• imported temperature control system
• imported driving system
• interlock and multi-protection
• adopting  imported PLC(OMRON or SIMES) to achieve optimized process control. stronger function,steady performance and much higher accurancy
• it can be also accomplished full-set link-lock protection,trouble safeguard,fault alarm cluing and so on
• operation interface on touching screen is visual and marked ,which is brief and easy to use.

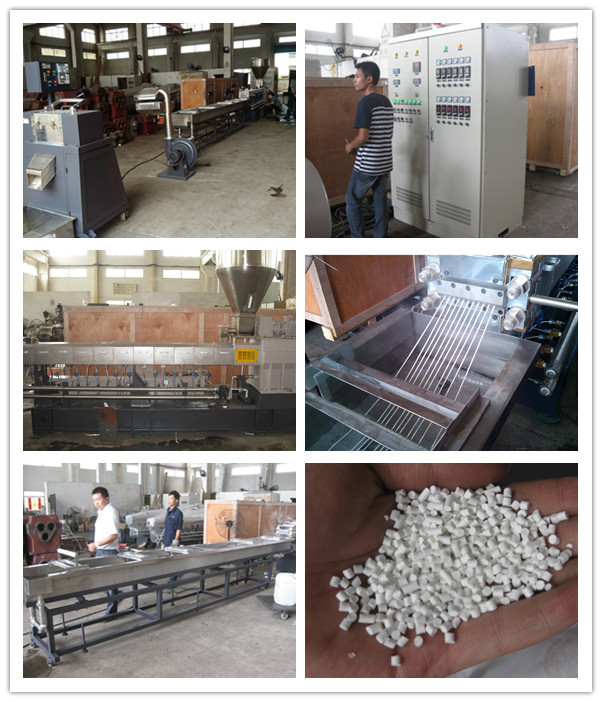

(6) pelletizing system

---.various modes of pelletizing,such as water-cooling strand,air-cooling pelletizing,water-ring pelletizing,under water pelletizing

3. Parameter table of twin screw extruder
