Material: | CA | Thickness: | 1-6mm |
---|---|---|---|
Screw: | 65mm | LD: | 28:1 |
Layer: | 3 | Warranty: | 1 Year |
High Light: | pet sheet extrusion line,sheet extrusion equipment |

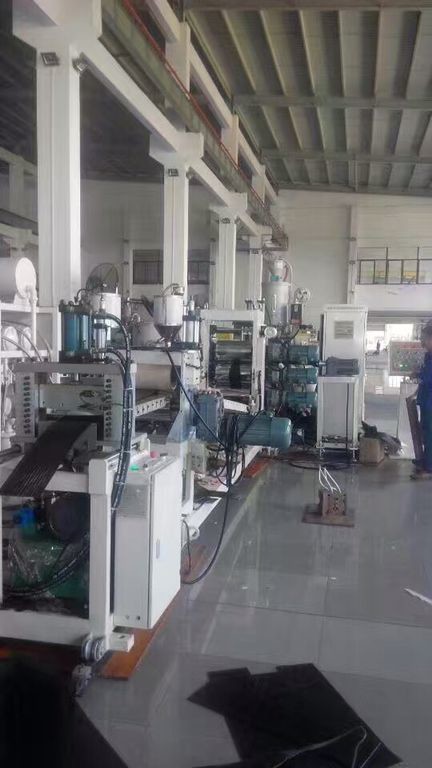

Cellulose Acetate Sheet Extrusion Machine, CA Spectacle Frame Board Extrusion Machine
The extruder is exclusively for CA sheet,according to the special requirements of customers,customized suitable for the production of single-layer to six-layer sheet of CA products.1mm-6mm thickness.Widely used in the framed glasses manufacturing industries.
Applications:
Glass frames
Machine features:
Screw with special mixing and plasticization function;
Coat hanger type die with two throttle designs
which enable to regulate the sheet thickness accurately;
±1 temperature control make the plasticizing process and
sheet thickness control more accurate;
Horinzontal, vertical or 45°incline type three rollers
calenders may be lifted freely;
Sheet thickness shall be regulated by screw and pressing
roller;
Separate roller temperature control system to control the
temperature of pressing roller to gain even sheet
thickness; Exact slicing machine, board length and
quantity;
Automatic cutter
Automatic metering to set the length of product
